D–25

TABLE OF HOUSING SHAPE

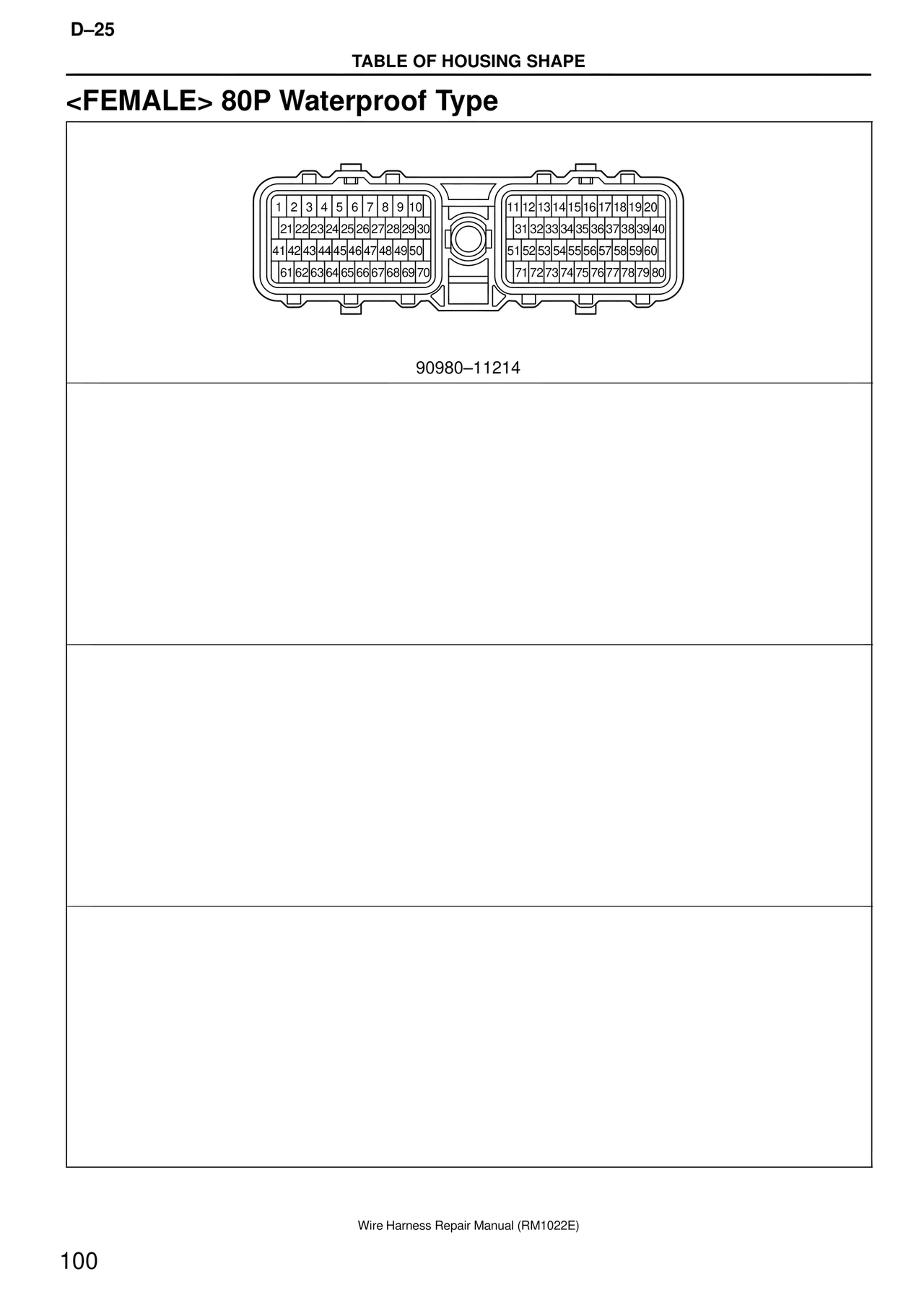

<FEMALE> 80P Waterproof Type

1 2 3 4 5 6 7 8 9 10
21 22 23 24 25 26 27 28 29 30
41 42 43 44 45 46 47 48 49 50
61 62 63 64 65 66 67 68 69 70

11 12 13 14 15 16 17 18 19 20
31 32 33 34 35 36 37 38 39 40
51 52 53 54 55 56 57 58 59 60
71 72 73 74 75 76 77 78 79 80

90980–11214

Wire Harness Repair Manual (RM1022E)

100
