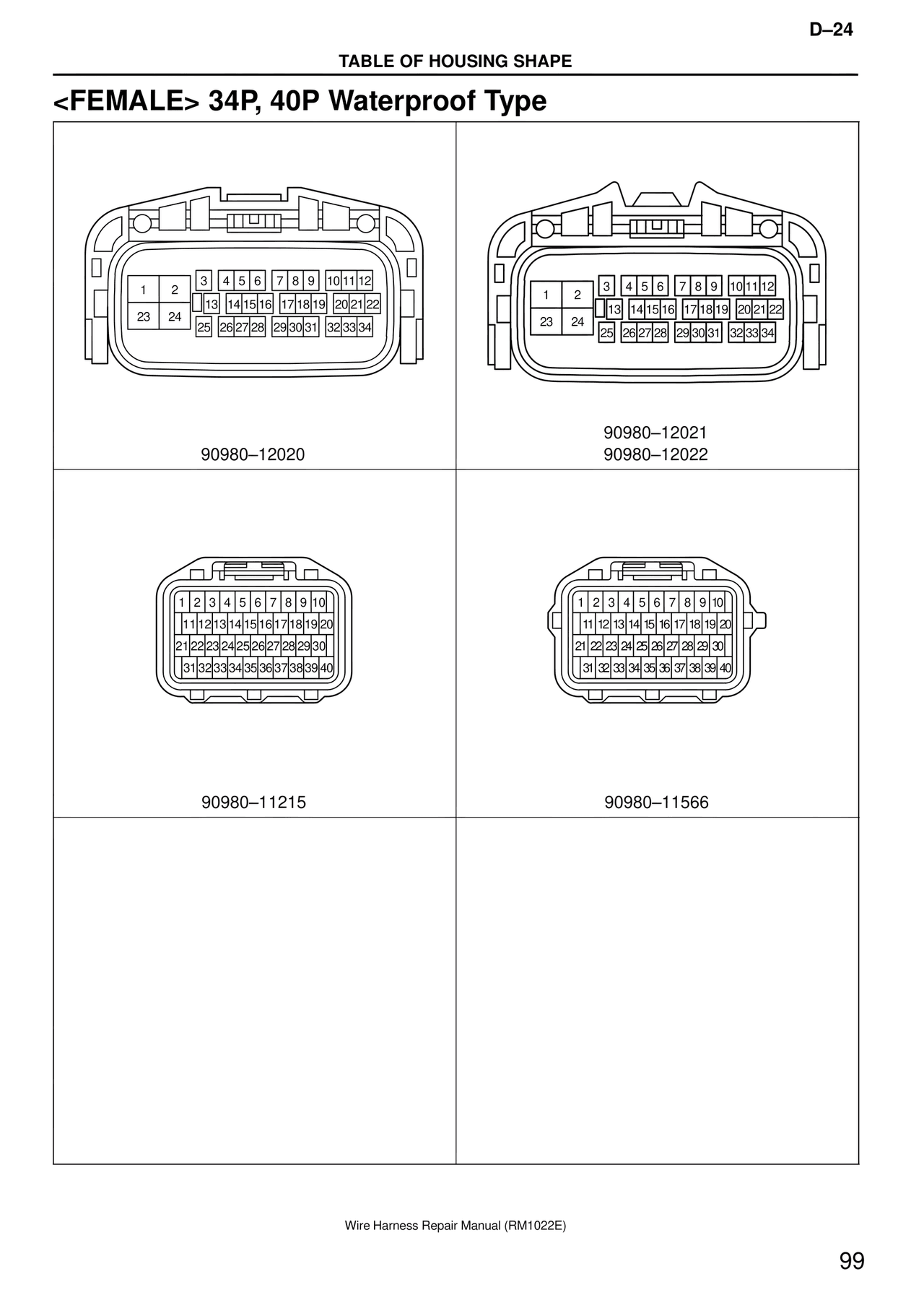

<FEMALE> 34P, 40P Waterproof Type — MK4 Supra Wire Harness, page 99
100%
D–24 TABLE OF HOUSING SHAPE <FEMALE> 34P, 40P Waterproof Type 1 2 23 24 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 26 27 28 29 30 31 32 33 34 90980–12020 1 2 23 24 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 26 27 28 29 30 31 32 33 34 90980–12021 90980–12022 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 90980–11215 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 90980–11566 Wire Harness Repair Manual (RM1022E) 99
