D–33

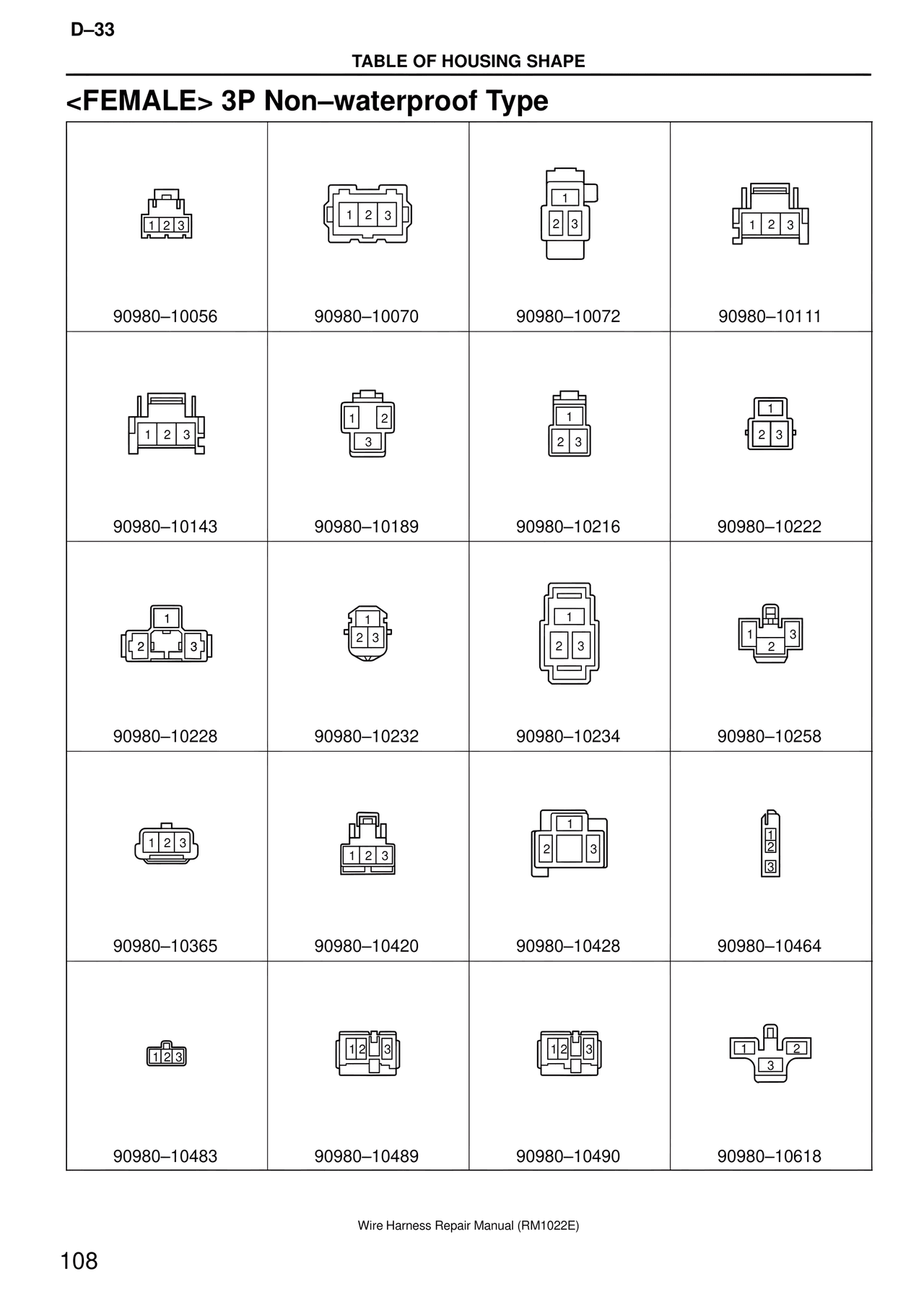

TABLE OF HOUSING SHAPE

<FEMALE> 3P Non–waterproof Type

1 2 3
90980–10056

1 2 3
90980–10070

1
2 3
90980–10072

1 2 3
90980–10111

1 2 3
90980–10143

1 2
3
90980–10189

1
2 3
90980–10216

1
2 3
90980–10222

1
2 3
90980–10228

2 3
90980–10232

1
2 3
90980–10234

1 3
2
90980–10258

1 2 3
90980–10365

1 2 3
90980–10420

1
2 3
90980–10428

1
2
3
90980–10464

1 2 3
90980–10483

1 2 3
90980–10489

1 2 3
90980–10490

1 2
3
90980–10618

Wire Harness Repair Manual (RM1022E)

108
