D–34

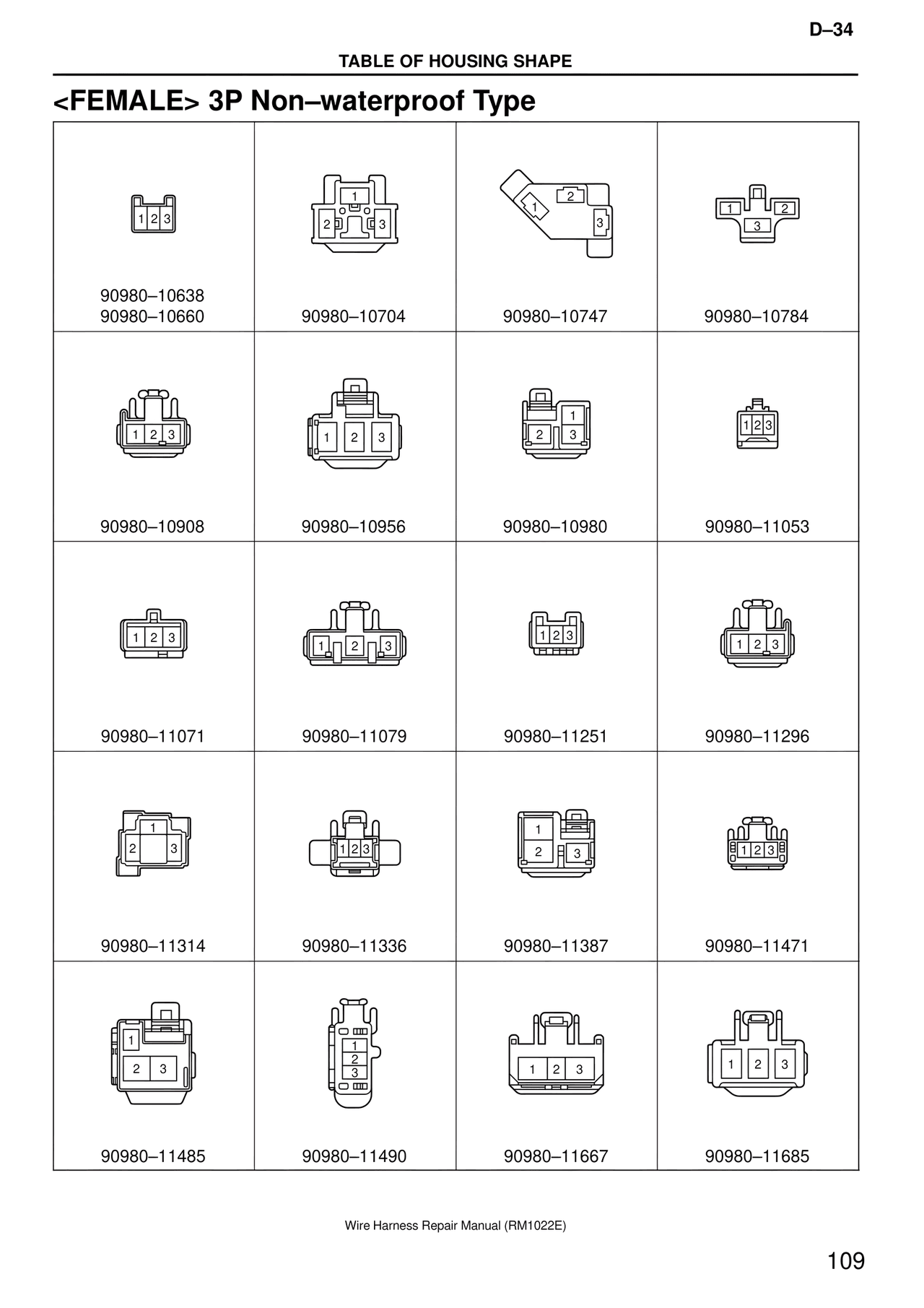

TABLE OF HOUSING SHAPE

<FEMALE> 3P Non–waterproof Type

1 2 3

90980–10638
90980–10660

1
2     3

90980–10704

1    2
3

90980–10747

1    2
3

90980–10784

1  2  3

90980–10908

1    2    3

90980–10956

1
2      3

90980–10980

1 2 3

90980–11053

1  2  3

90980–11071

1    2    3

90980–11079

1 2 3

90980–11251

1  2  3

90980–11296

1
2      3

90980–11314

1 2 3

90980–11336

1
2      3

90980–11387

1  2  3

90980–11471

1
2    3

90980–11485

1
2
3

90980–11490

1    2    3

90980–11667

1    2    3

90980–11685

Wire Harness Repair Manual (RM1022E)

109
