D–40

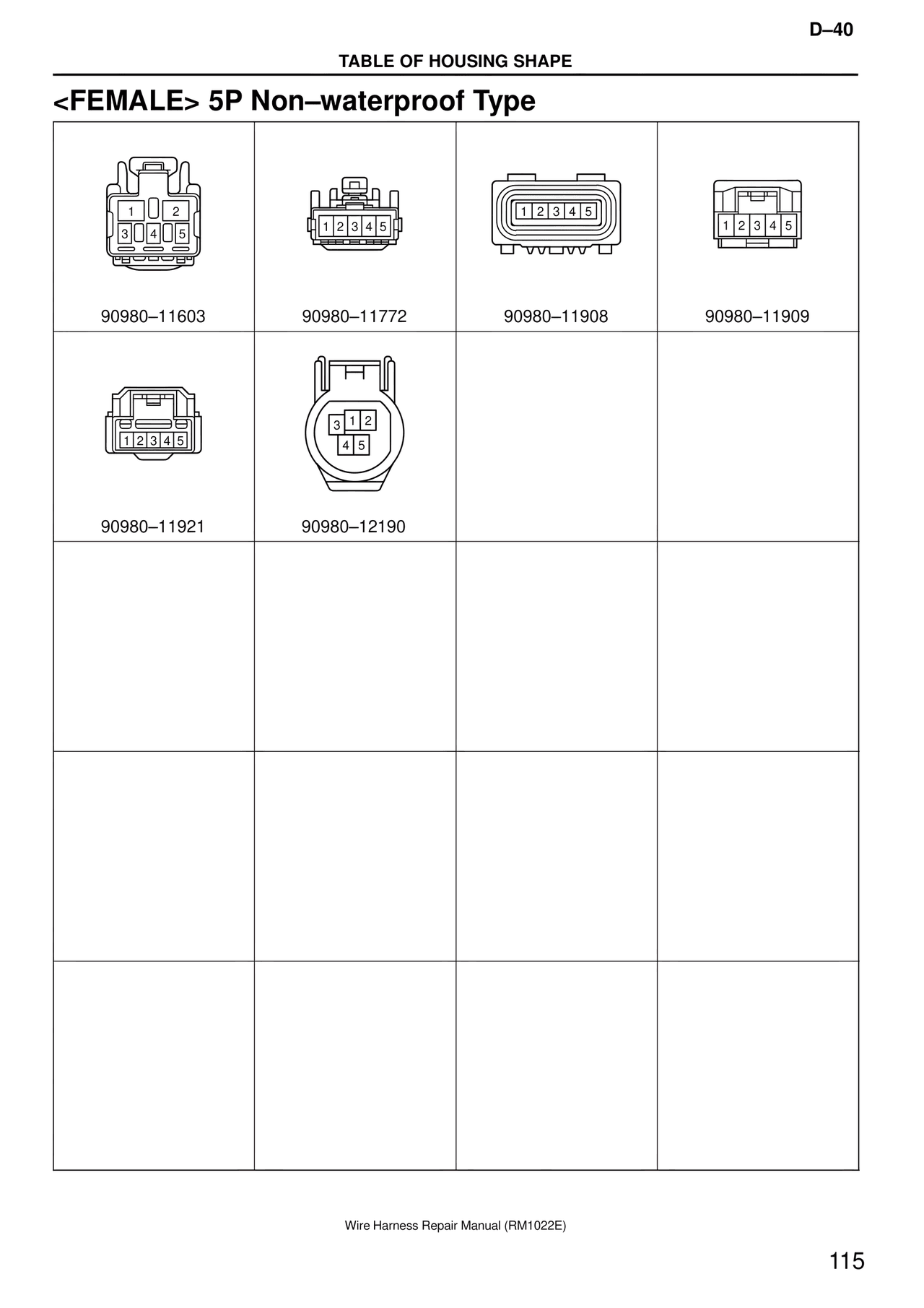

TABLE OF HOUSING SHAPE

<FEMALE> 5P Non–waterproof Type

1  2
3  4  5

90980–11603

1 2 3 4 5

90980–11772

1 2 3 4 5

90980–11908

1 2 3 4 5

90980–11909

1 2 3 4 5

90980–11921

3  1  2
4  5

90980–12190

Wire Harness Repair Manual (RM1022E)

115
