D–41

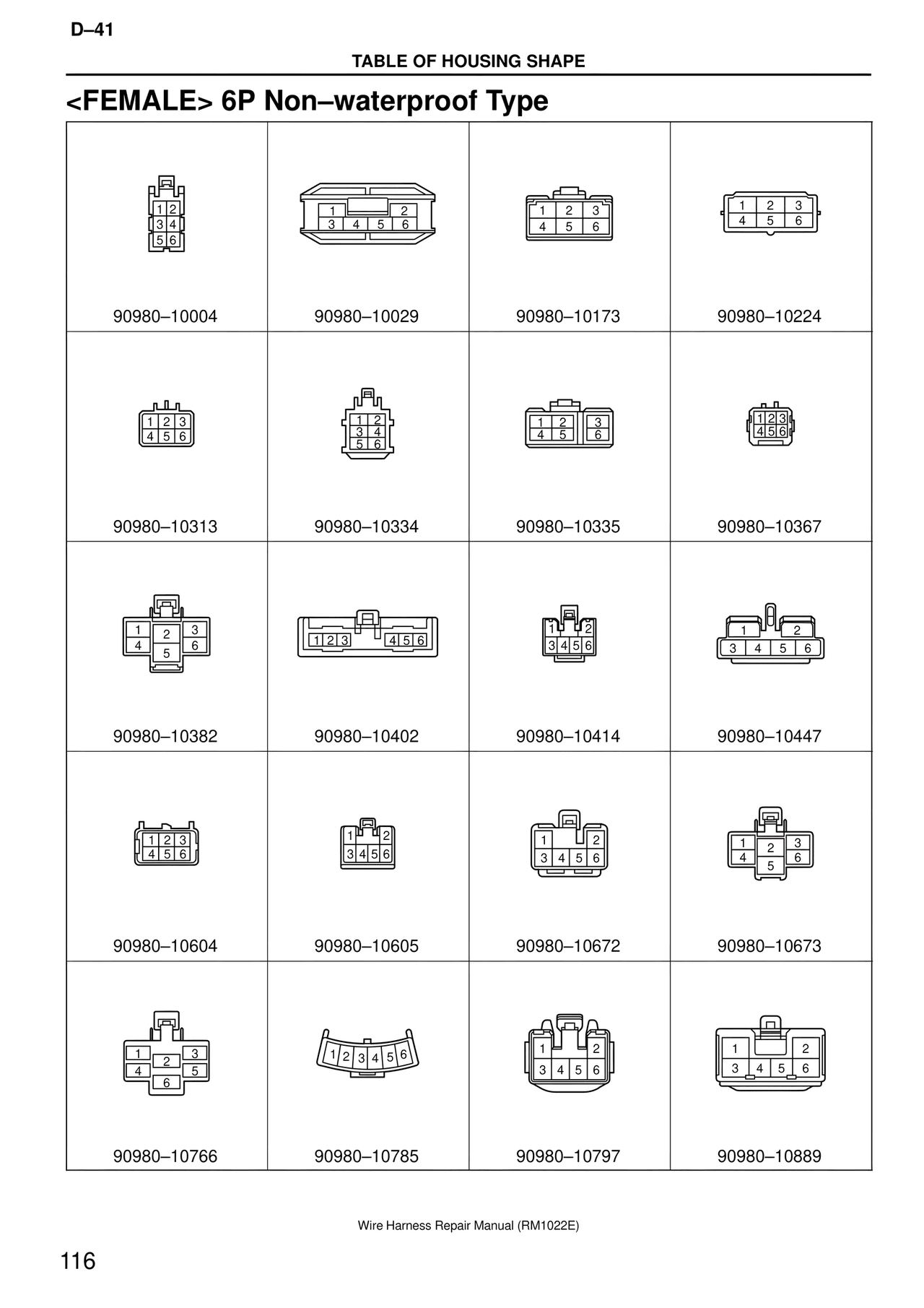

TABLE OF HOUSING SHAPE

<FEMALE> 6P Non–waterproof Type

1 2
3 4
5 6

90980–10004

1    2
3  4  5  6

90980–10029

1  2  3
4  5  6

90980–10173

1  2  3
4  5  6

90980–10224

1 2 3
4 5 6

90980–10313

1 2
3 4
5 6

90980–10334

1  2    3
4  5    6

90980–10335

1 2 3
4 5 6

90980–10367

1    2    3
4    5    6

90980–10382

1 2 3    4 5 6

90980–10402

1  2
3 4 5 6

90980–10414

1      2
3  4  5  6

90980–10447

1 2 3
4 5 6

90980–10604

1    2
3 4 5 6

90980–10605

1      2
3  4  5  6

90980–10672

1    2    3
4    5
         6

90980–10673

1    2    3
4         5
     6

90980–10766

1 2 3 4 5 6

90980–10785

1      2
3  4  5  6

90980–10797

1         2
3  4  5  6

90980–10889

Wire Harness Repair Manual (RM1022E)

116
