D–45

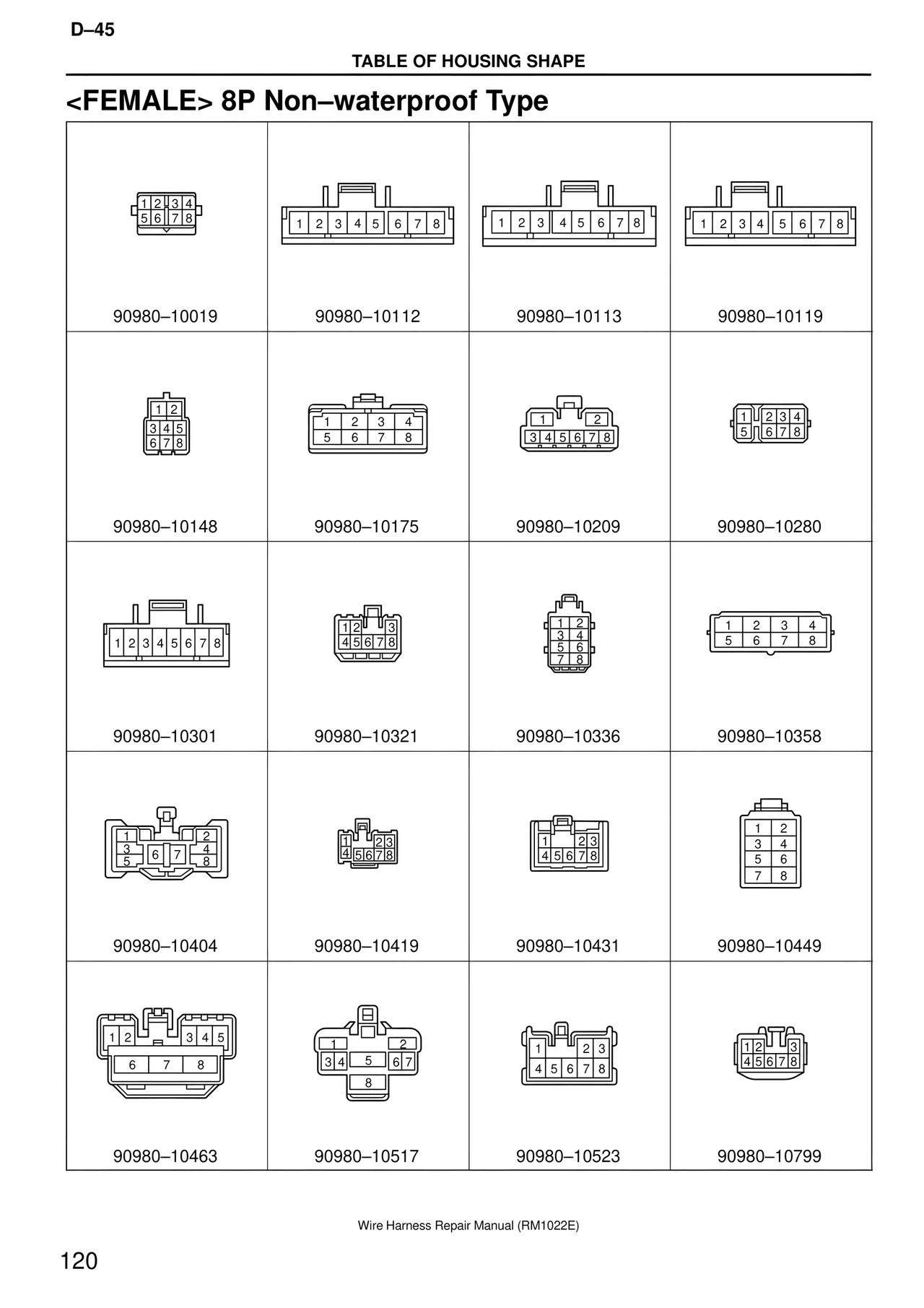

TABLE OF HOUSING SHAPE

<FEMALE> 8P Non–waterproof Type

1 2 3 4
5 6 7 8

90980–10019

1  2  3  4  5  6  7  8

90980–10112

1  2  3  4  5  6  7  8

90980–10113

1  2  3  4  5  6  7  8

90980–10119

1 2
3 4 5
6 7 8

90980–10148

1  2  3  4
5  6  7  8

90980–10175

1       2
3 4 5 6 7 8

90980–10209

1 2 3 4
5 6 7 8

90980–10280

1 2 3 4 5 6 7 8

90980–10301

1 2  3
4 5 6 7 8

90980–10321

1 2
3 4
5 6
7 8

90980–10336

1  2  3  4
5  6  7  8

90980–10358

1    2
3  6  7  4
5        8

90980–10404

1 2 3
4 5 6 7 8

90980–10419

1    2 3
4 5 6 7 8

90980–10431

1  2
3  4
5  6
7  8

90980–10449

1 2    3 4 5
6  7  8

90980–10463

1    2
3 4  5  6 7
8

90980–10517

1    2 3
4 5 6 7 8

90980–10523

1 2  3
4 5 6 7 8

90980–10799

Wire Harness Repair Manual (RM1022E)
