D–44

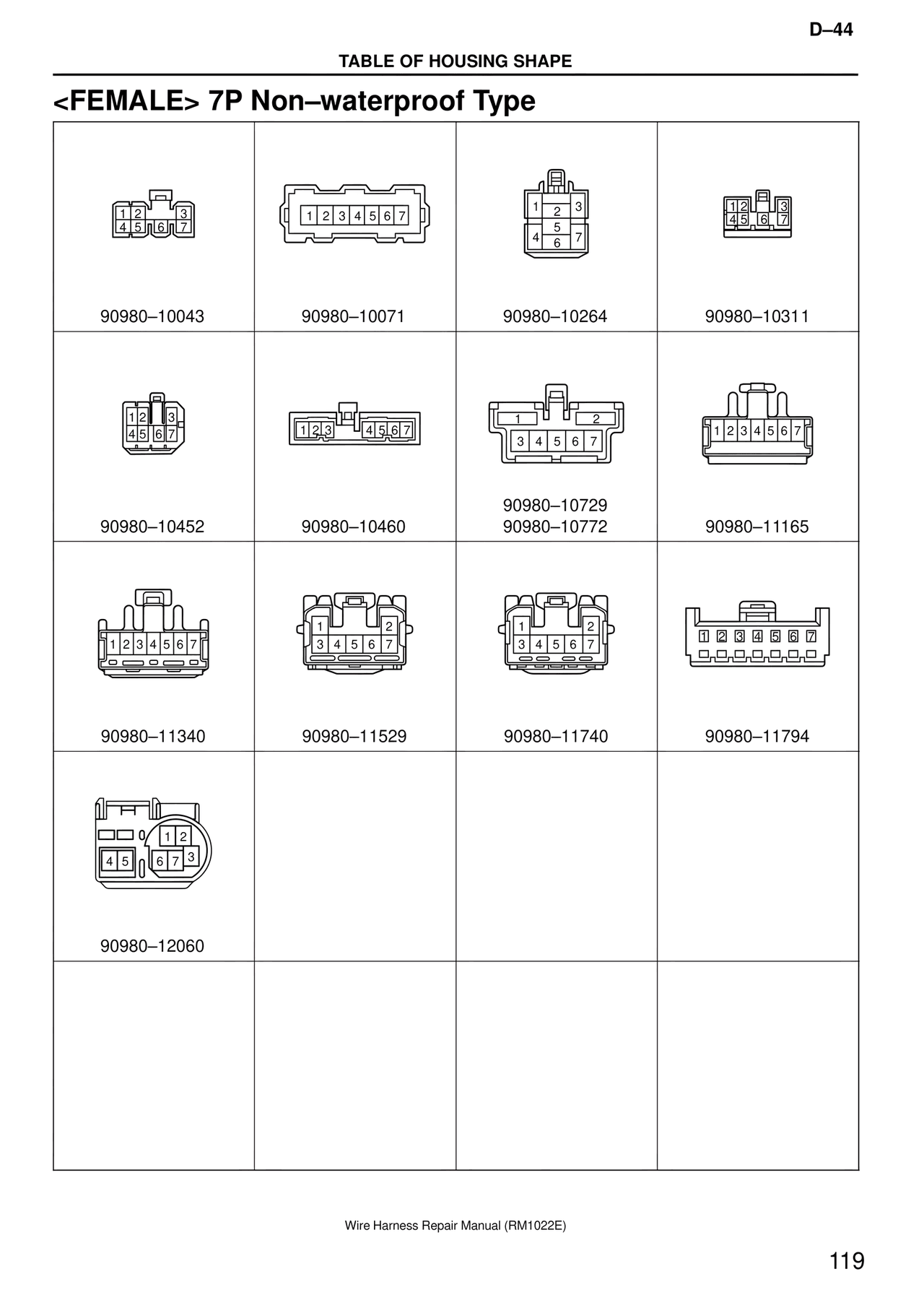

TABLE OF HOUSING SHAPE
<FEMALE> 7P Non–waterproof Type
1 2 3
4 5 6 7
90980–10043
1 2 3 4 5 6 7
90980–10071
1 2 3
5
4 6
7
90980–10264
1 2 3
4 5 6 7
90980–10311
1 2 3
4 5 6 7
90980–10452
1 2 3 4 5 6 7
90980–10460
1 2
3 4 5 6 7
90980–10729
90980–10772
1 2 3 4 5 6 7
90980–11165
1 2 3 4 5 6 7
90980–11340
1 2
3 4 5 6 7
90980–11529
1 2
3 4 5 6 7
90980–11740
1 2 3 4 5 6 7
90980–11794
0 1 2
4 5 6 7 3
90980–12060
Wire Harness Repair Manual (RM1022E)
119
