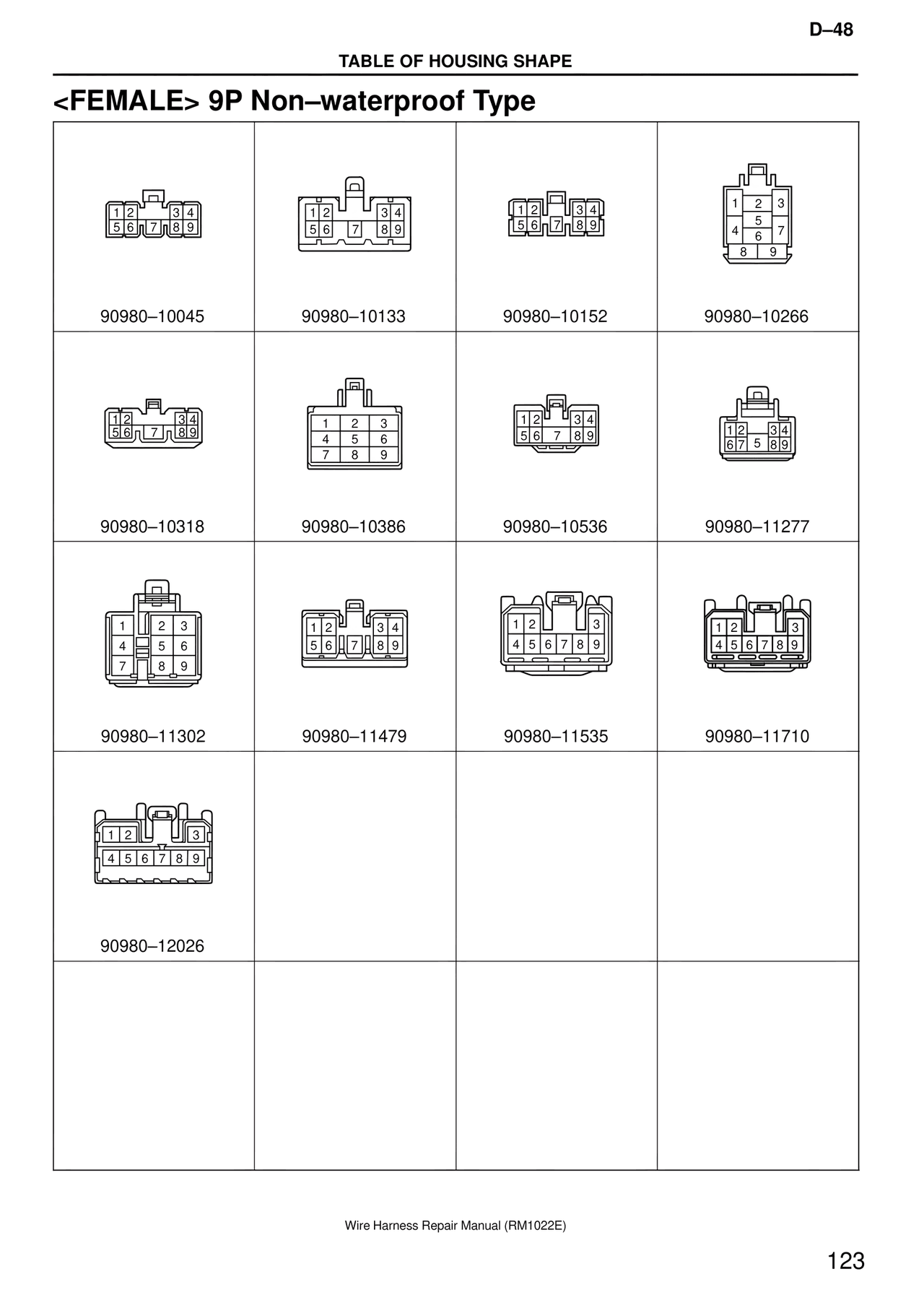

TABLE OF HOUSING SHAPE

<FEMALE> 9P Non–waterproof Type

1 2  3 4
5 6 7 8 9

90980–10045

1 2  3 4
5 6  7  8 9

90980–10133

1 2  3 4
5 6 7 8 9

90980–10152

1  2  3
   5
4  6  7
   8  9

90980–10266

1 2  3 4
5 6 7 8 9

90980–10318

1  2  3
4  5  6
7  8  9

90980–10386

1 2  3 4
5 6 7  8 9

90980–10536

1 2  3 4
6 7 5 8 9

90980–11277

1  2  3
4  5  6
7  8  9

90980–11302

1 2  3 4
5 6 7 8 9

90980–11479

1 2   3
4 5 6 7 8 9

90980–11535

1 2   3
4 5 6 7 8 9

90980–11710

1 2  3
4 5 6 7 8 9

90980–12026
