D–49

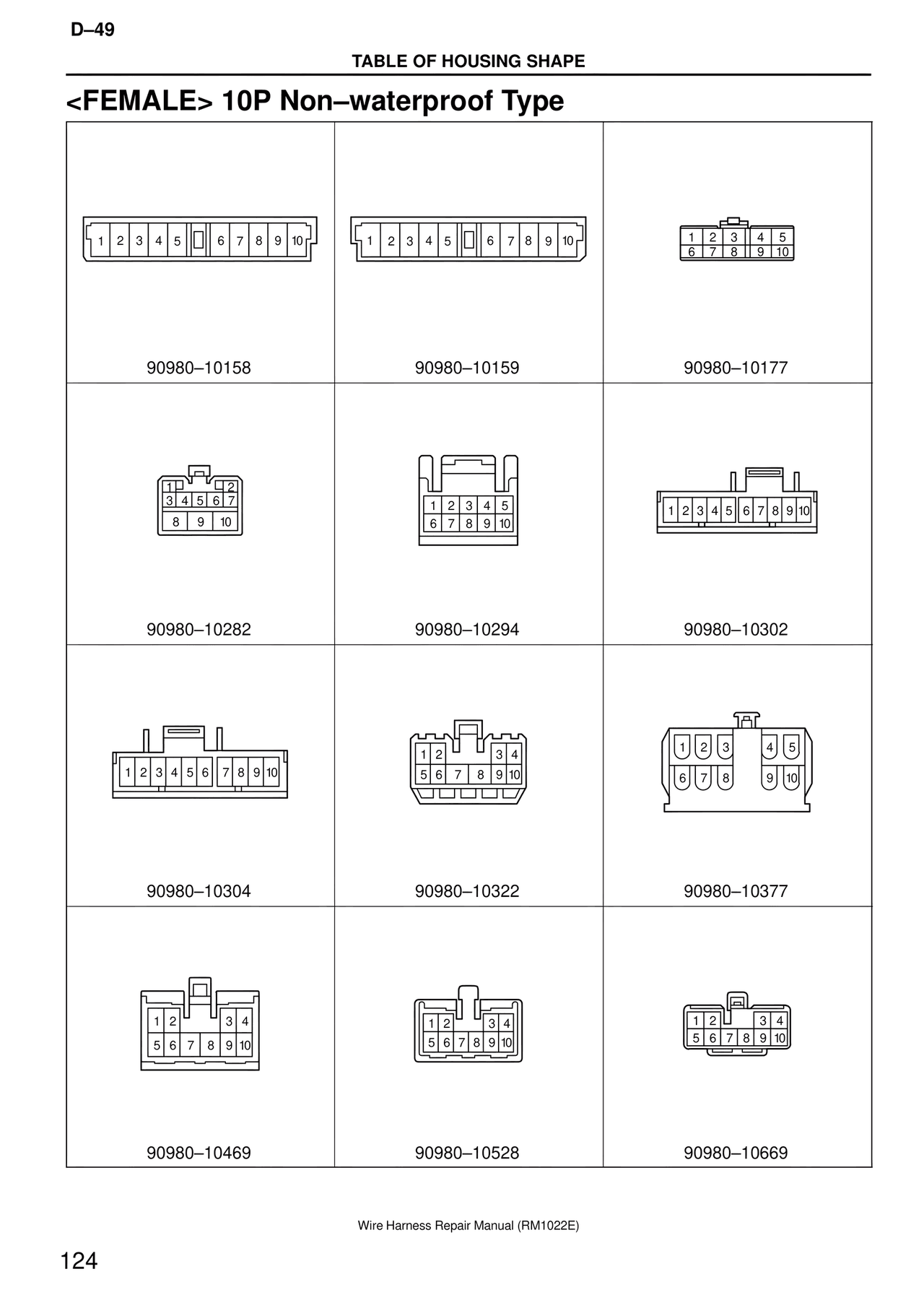

TABLE OF HOUSING SHAPE

<FEMALE> 10P Non–waterproof Type

1 2 3 4 5  6 7 8 9 10

90980–10158

1 2 3 4 5  6 7 8 9 10

90980–10159

1  2  3  4  5
6  7  8  9 10

90980–10177

1  2
3 4 5 6 7
8  9  10

90980–10282

1 2 3 4 5
6 7 8 9 10

90980–10294

1 2 3 4 5 6 7 8 9 10

90980–10302

1 2 3 4 5 6 7 8 9 10

90980–10304

1 2  3 4
5 6 7  8 9 10

90980–10322

1  2  3  4  5
6  7  8  9 10

90980–10377

1 2  3 4
5 6 7 8 9 10

90980–10469

1 2  3 4
5 6 7 8 9 10

90980–10528

1 2  3 4
5 6 7 8 9 10

90980–10669

Wire Harness Repair Manual (RM1022E)

124
