D–53

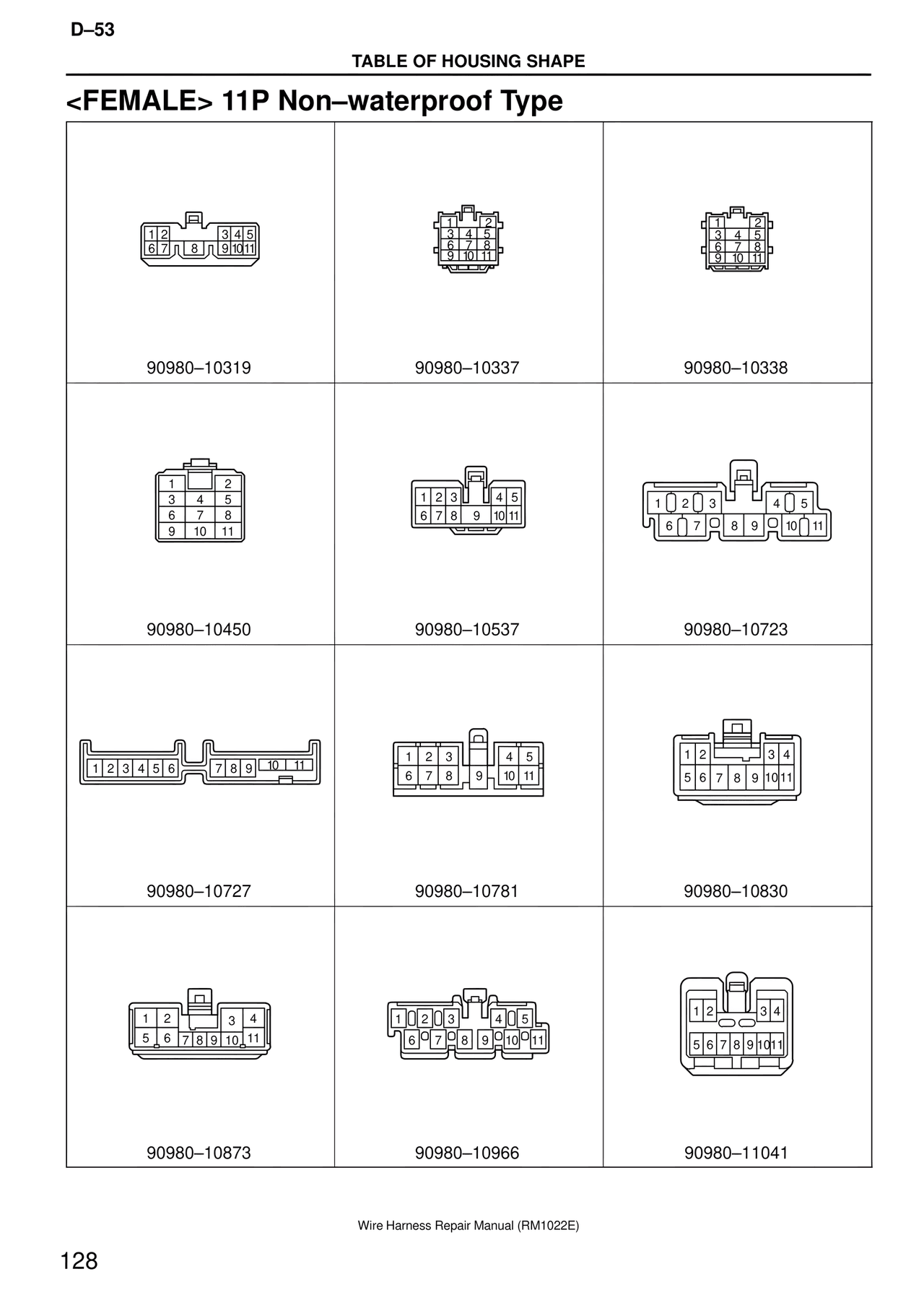

TABLE OF HOUSING SHAPE

<FEMALE> 11P Non–waterproof Type

1 2    3 4 5
6 7  8  9 10 11

90980–10319

1 2
3 4 5
6 7 8
9 10 11

90980–10337

1  2
3  4  5
6  7  8
9  10  11

90980–10338

1       2
3    4    5
6    7    8
9    10   11

90980–10450

1 2 3    4 5
6 7 8  9  10 11

90980–10537

1  2  3     4  5
6  7     8  9  10  11

90980–10723

1 2 3 4 5 6   7 8 9  10  11

90980–10727

1  2  3     4  5
6  7  8   9  10  11

90980–10781

1 2     3 4
5 6 7 8 9 10 11

90980–10830

1  2     3  4
5  6  7 8 9 10 11

90980–10873

1  2  3     4  5
6  7  8  9  10  11

90980–10966

1 2     3 4
5 6 7 8 9 10 11

90980–11041

Wire Harness Repair Manual (RM1022E)

128
