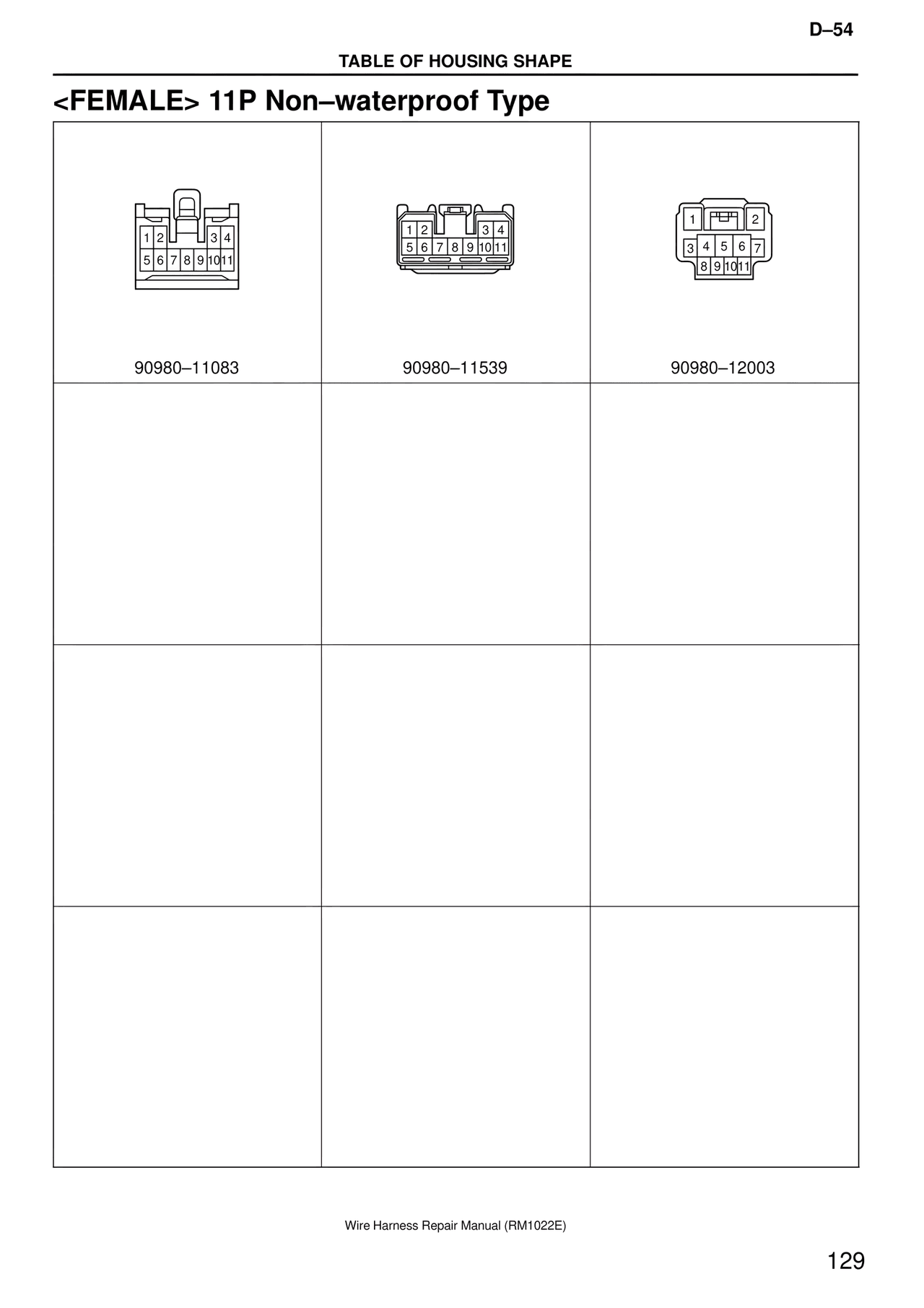

D–54 TABLE OF HOUSING SHAPE <FEMALE> 11P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 90980–11083 1 2 3 4 5 6 7 8 9 10 11 90980–11539 1 2 3 4 5 6 7 8 9 10 11 90980–12003 Wire Harness Repair Manual (RM1022E) 129
