D–56

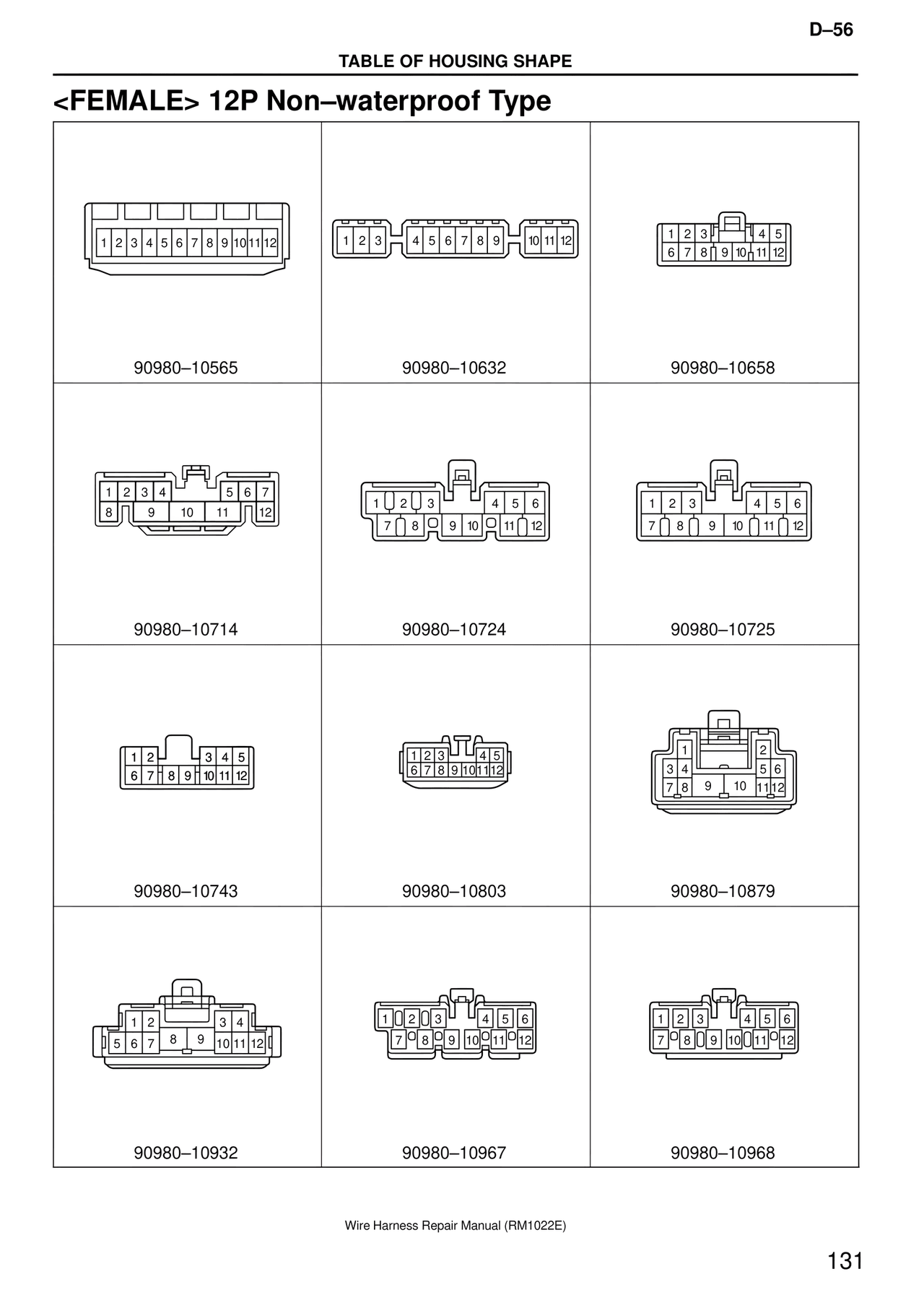

TABLE OF HOUSING SHAPE
<FEMALE> 12P Non–waterproof Type
1 2 3 4 5 6 7 8 9 10 11 12
90980–10565
1 2 3 4 5 6 7 8 9 10 11 12
90980–10632
1 2 3 4 5
6 7 8 9 10 11 12
90980–10658
1 2 3 4 5 6 7
8 9 10 11 12
90980–10714
1 2 3 4 5 6
7 8 9 10 11 12
90980–10724
1 2 3 4 5 6
7 8 9 10 11 12
90980–10725
1 2 3 4 5
6 7 8 9 10 11 12
90980–10743
1 2 3 4 5
6 7 8 9 10 11 12
90980–10803
1 2
3 4 5 6
7 8 9 10 11 12
90980–10879
1 2 3 4
5 6 7 8 9 10 11 12
90980–10932
1 2 3 4 5 6
7 8 9 10 11 12
90980–10967
1 2 3 4 5 6
7 8 9 10 11 12
90980–10968
Wire Harness Repair Manual (RM1022E)
131
