D–57

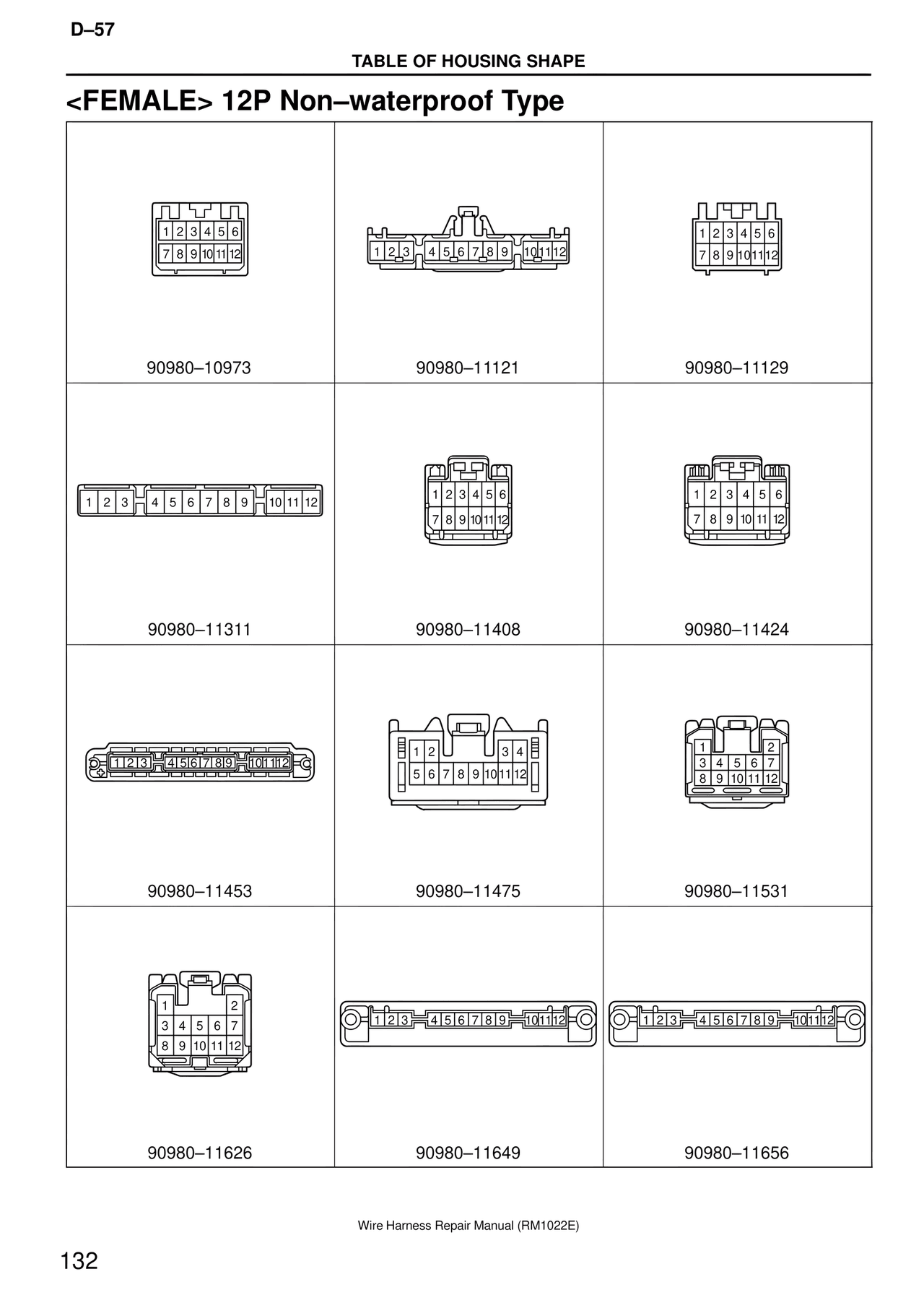

TABLE OF HOUSING SHAPE

<FEMALE> 12P Non–waterproof Type

1 2 3 4 5 6
7 8 9 10 11 12

90980–10973

1 2 3   4 5 6 7 8 9   10 11 12

90980–11121

1 2 3 4 5 6
7 8 9 10 11 12

90980–11129

1 2 3   4 5 6 7 8 9   10 11 12

90980–11311

1 2 3 4 5 6
7 8 9 10 11 12

90980–11408

1 2 3 4 5 6
7 8 9 10 11 12

90980–11424

1 2 3 4 5 6 7 8 9   10 11 12

90980–11453

1 2       3 4
5 6 7 8 9 10 11 12

90980–11475

1         2
3 4 5 6 7
8 9 10 11 12

90980–11531

1         2
3 4 5 6 7
8 9 10 11 12

90980–11626

1 2 3   4 5 6 7 8 9   10 11 12

90980–11649

1 2 3   4 5 6 7 8 9   10 11 12

90980–11656

Wire Harness Repair Manual (RM1022E)
