WH/Wire Harness — <female> 15P Non–waterproof Type, page 142

D–67

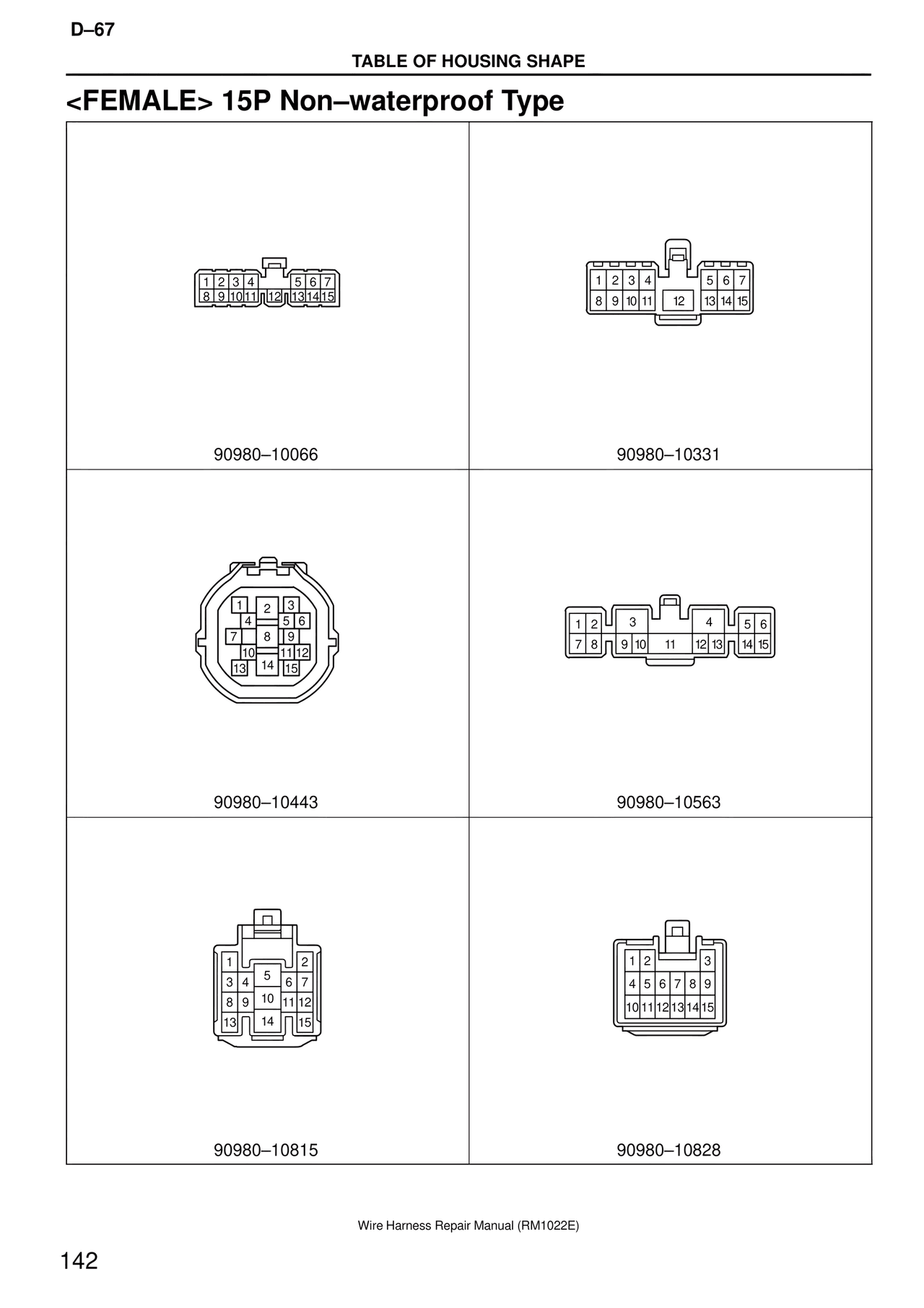

TABLE OF HOUSING SHAPE

<FEMALE> 15P Non–waterproof Type

1 2 3 4    5 6 7
8 9 10 11 12 13 14 15

90980–10066

1 2 3 4    5 6 7
8 9 10 11   12   13 14 15

90980–10331

1   2   3
4    5 6
7   8   9
10   11 12
13   14  15

90980–10443

1 2   3      4    5 6
7 8  9 10  11  12 13  14 15

90980–10563

1         2
3 4    5   6 7
8 9   10  11 12
13    14      15

90980–10815

1 2      3
4 5 6 7 8 9
10 11 12 13 14 15

90980–10828
