D–68

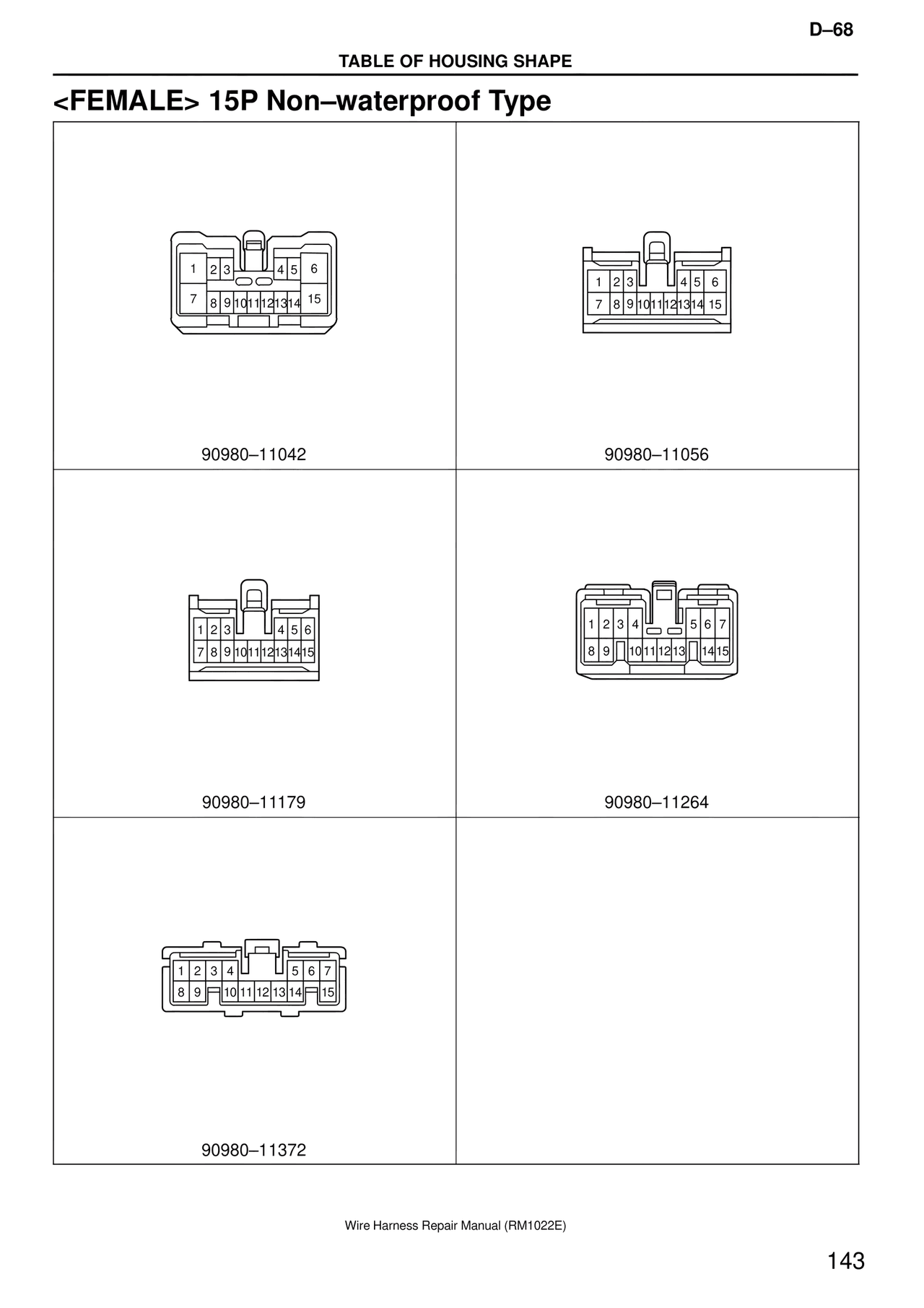

TABLE OF HOUSING SHAPE

<FEMALE> 15P Non–waterproof Type

1 2 3    4 5 6
7 8 9 10 11 12 13 14  15

90980–11042

1 2 3    4 5 6
7 8 9 10 11 12 13 14 15

90980–11056

1 2 3    4 5 6
7 8 9 10 11 12 13 14 15

90980–11179

1 2 3 4    5 6 7
8 9   10 11 12 13   14 15

90980–11264

1 2 3 4    5 6 7
8 9   10 11 12 13 14   15

90980–11372

Wire Harness Repair Manual (RM1022E)

143
