WH/Wire Harness — <female> 16P Non–waterproof Type, page 145

D–70

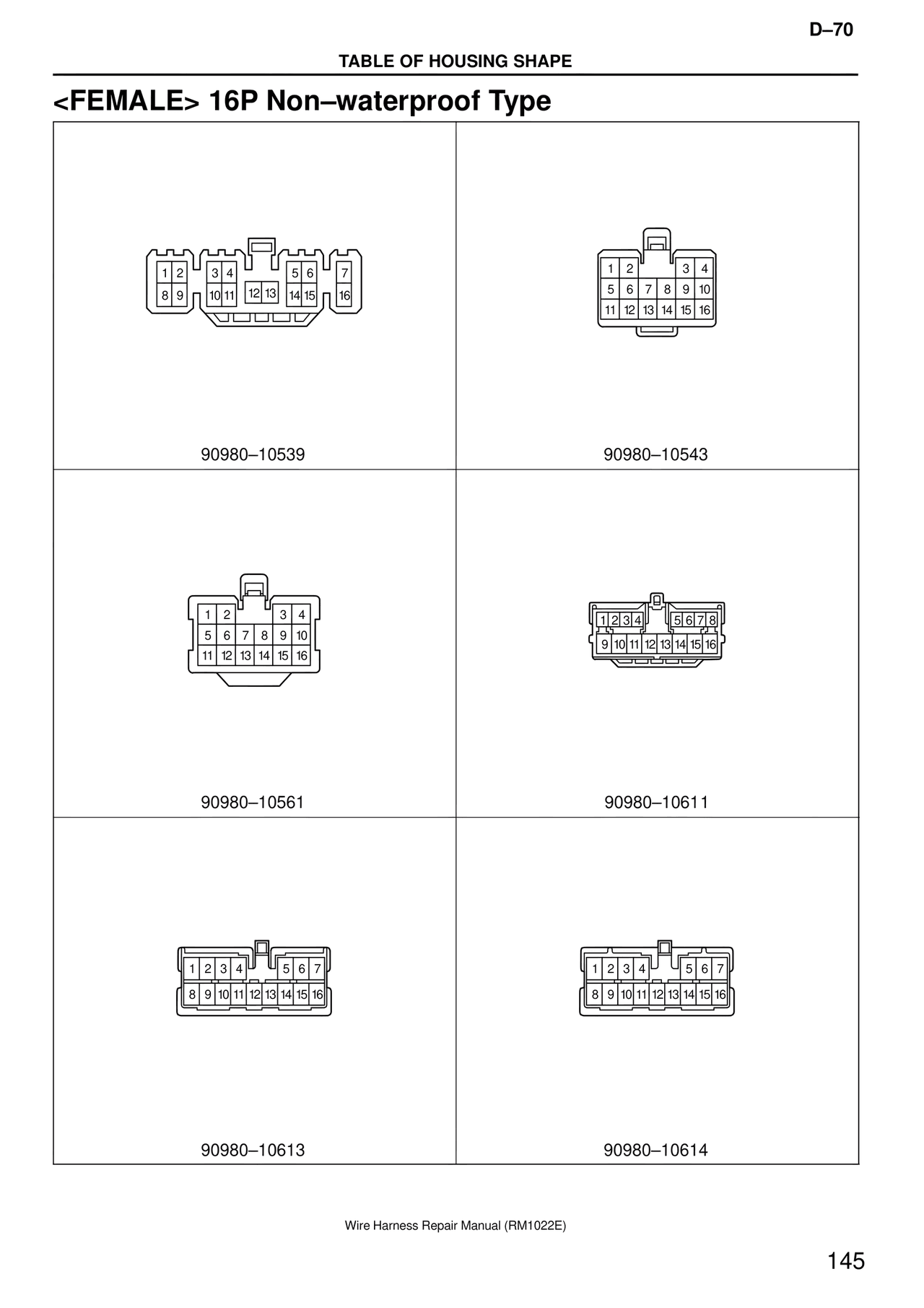

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2  3 4  5 6  7
8 9  10 11  12 13  14 15  16

90980–10539

1 2  3 4
5 6 7 8 9 10
11 12 13 14 15 16

90980–10543

1 2  3 4
5 6 7 8 9 10
11 12 13 14 15 16

90980–10561

1 2 3 4  5 6 7 8
9 10 11 12 13 14 15 16

90980–10611

1 2 3 4  5 6 7
8 9 10 11 12 13 14 15 16

90980–10613

1 2 3 4  5 6 7
8 9 10 11 12 13 14 15 16

90980–10614

Wire Harness Repair Manual (RM1022E)
