D–69

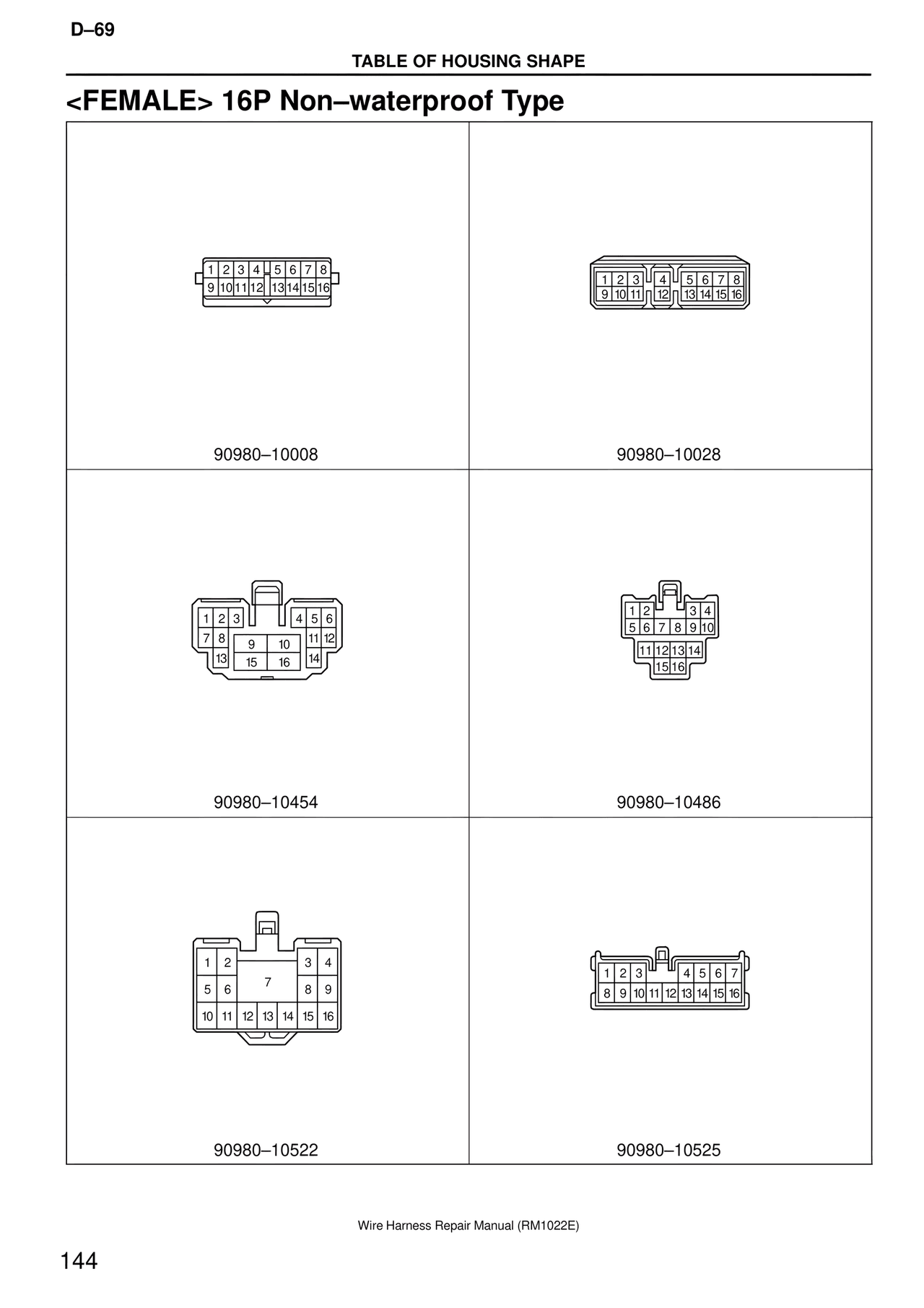

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3 4  5 6 7 8
9 10 11 12  13 14 15 16

90980–10008

1 2 3  4  5 6 7 8
9 10 11  12  13 14 15 16

90980–10028

1 2 3    4 5 6
7 8    11 12
13   9   10   14
   15   16

90980–10454

1 2    3 4
5 6 7 8 9 10
11 12 13 14
15 16

90980–10486

1 2      3 4
5 6    7    8 9
10 11  12 13 14  15 16

90980–10522

1 2 3    4 5 6 7
8 9 10 11 12 13 14 15 16

90980–10525

Wire Harness Repair Manual (RM1022E)

144
