WH/Wire Harness — <female> 16P Non–waterproof Type, page 147

D–72

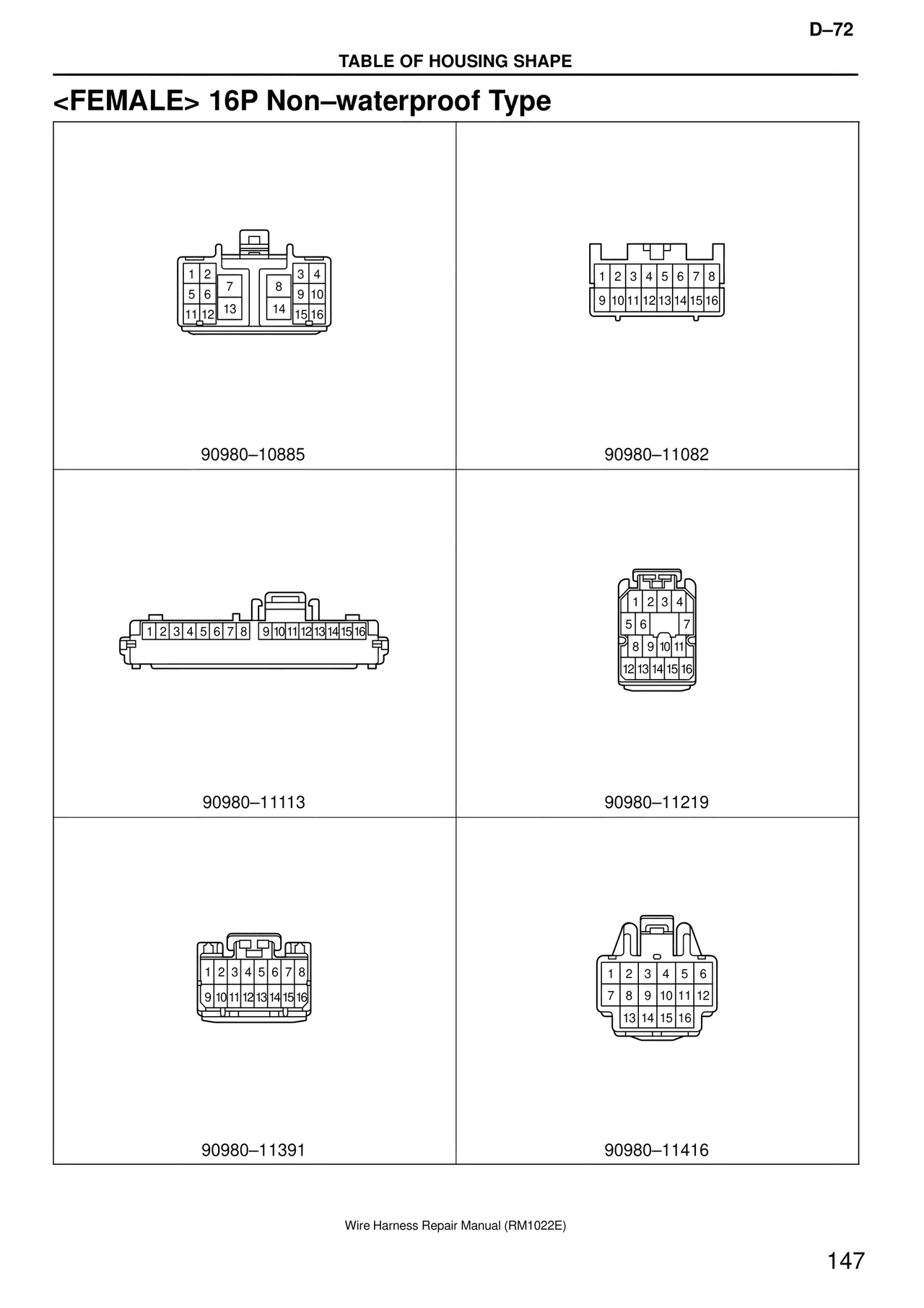

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2    3 4
5 6  7  8  9 10
11 12  13  14  15 16

90980–10885

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11082

1 2 3 4 5 6 7 8  9 10 11 12 13 14 15 16

90980–11113

1 2 3 4
5 6    7
8 9 10 11
12 13 14 15 16

90980–11219

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11391

1 2 3 4 5 6
7 8 9 10 11 12
13 14 15 16

90980–11416
