D–73

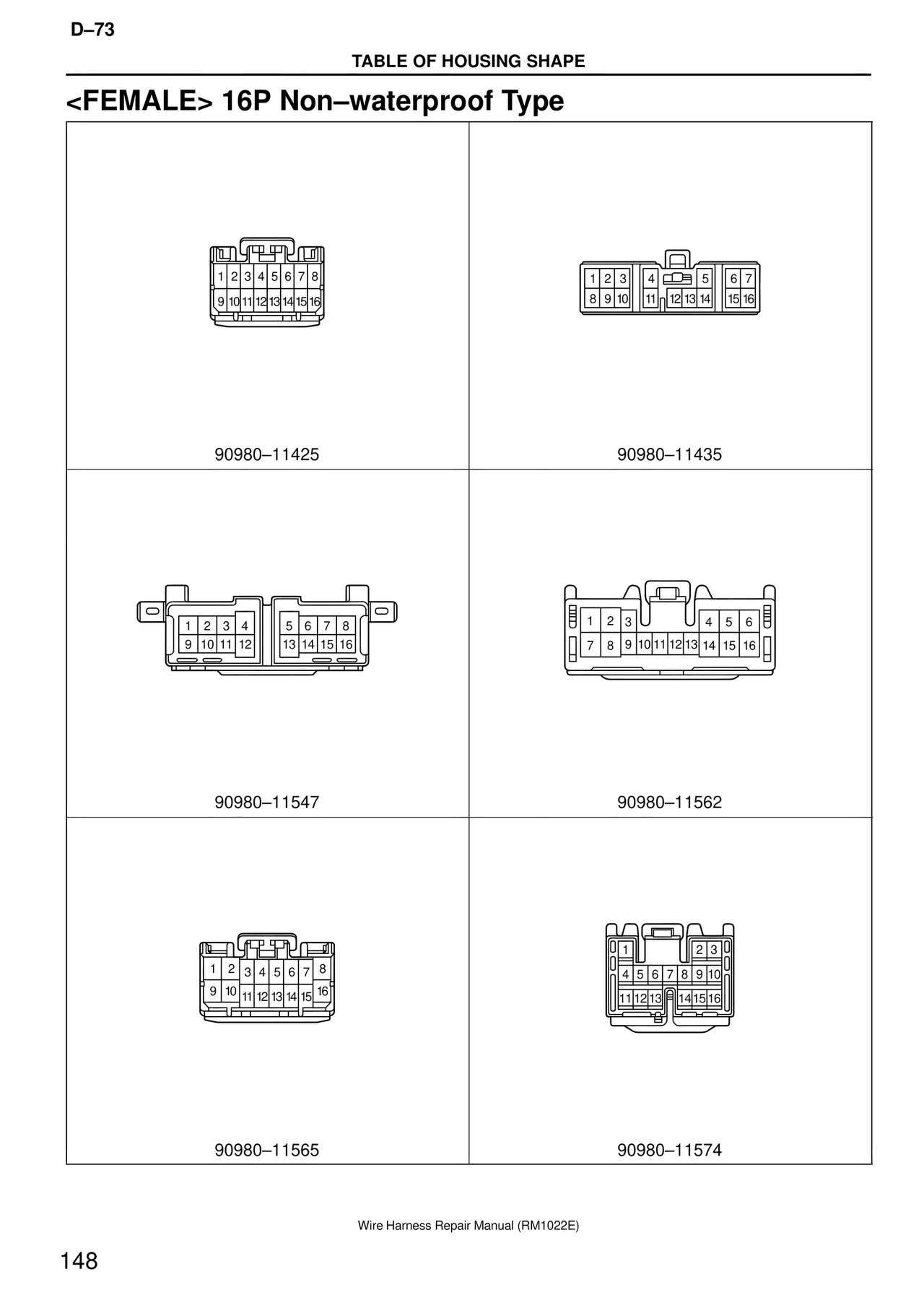

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11425

1 2 3   4     5   6 7
8 9 10  11 12 13 14  15 16

90980–11435

1  2  3  4    5  6  7  8
9 10 11 12   13 14 15 16

90980–11547

1  2  3       4  5  6
7  8  9 10 11 12 13  14 15 16

90980–11562

1  2  3  4  5  6  7  8
9 10  11 12 13 14 15  16

90980–11565

1      2  3
4  5  6  7  8  9 10
11 12 13   14 15 16

90980–11574

Wire Harness Repair Manual (RM1022E)

148
