D–75

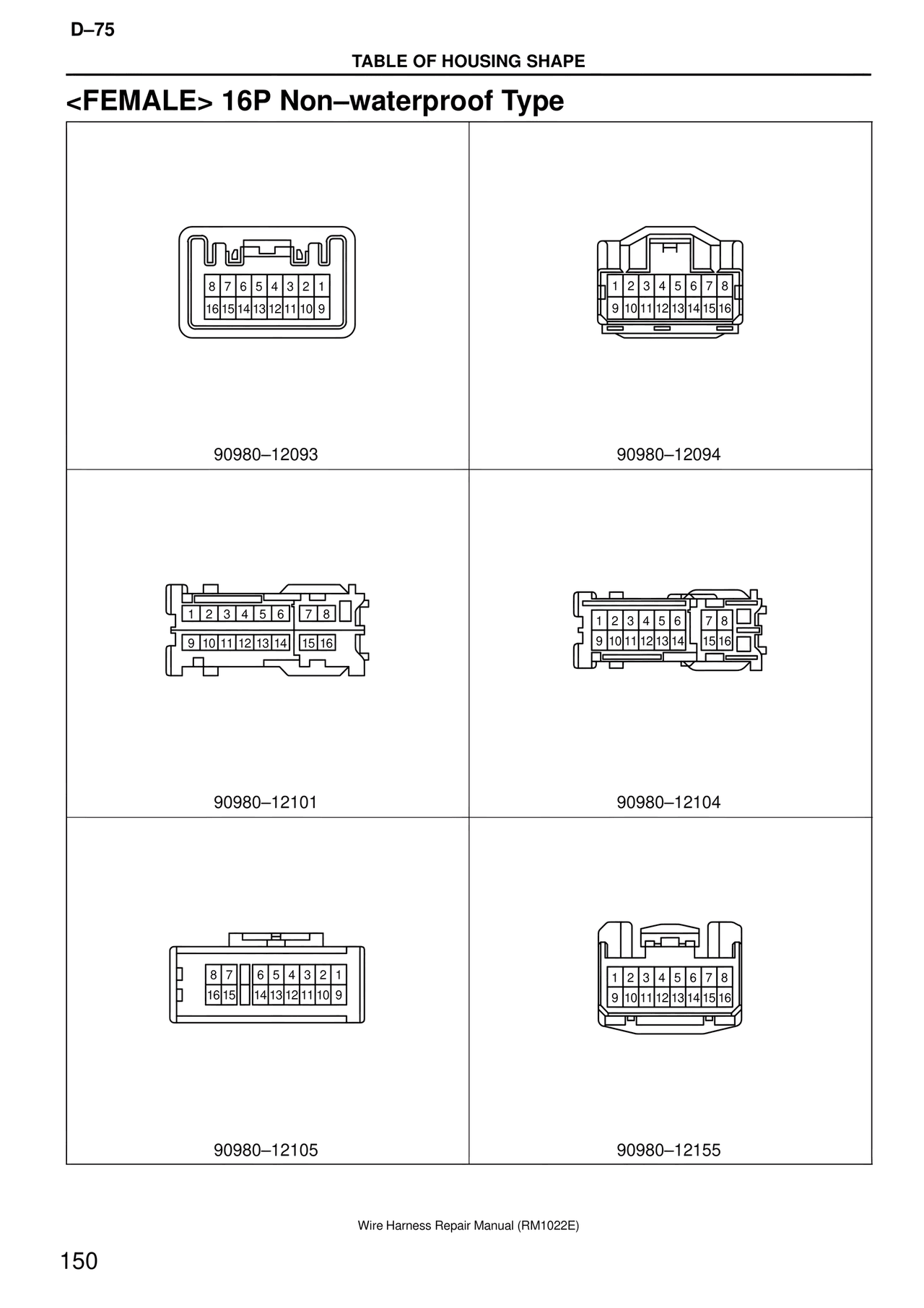

TABLE OF HOUSING SHAPE
<FEMALE> 16P Non–waterproof Type
8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
90980–12093
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–12094
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–12101
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–12104
8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
90980–12105
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
90980–12155
Wire Harness Repair Manual (RM1022E)
150
