D–74

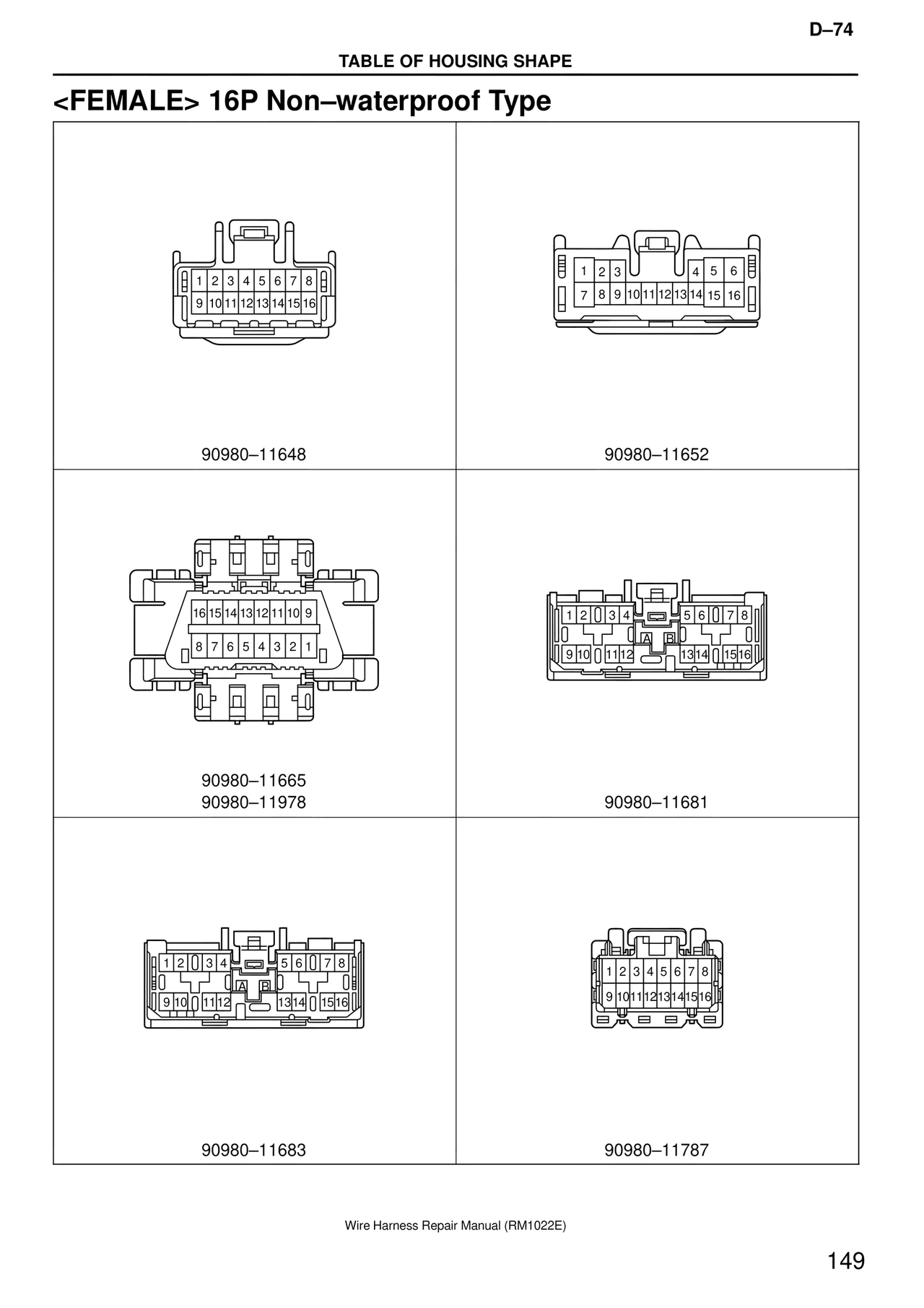

TABLE OF HOUSING SHAPE

<FEMALE> 16P Non–waterproof Type

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11648

1 2 3    4 5 6
7 8 9 10 11 12 13 14 15 16

90980–11652

16 15 14 13 12 11 10 9
8 7 6 5 4 3 2 1

90980–11665
90980–11978

1 2 3 4    5 6 7 8
9 10 11 12    13 14 15 16
A B

90980–11681

1 2 3 4    5 6 7 8
9 10 11 12    13 14 15 16
A B

90980–11683

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

90980–11787

Wire Harness Repair Manual (RM1022E)

149
