D–78

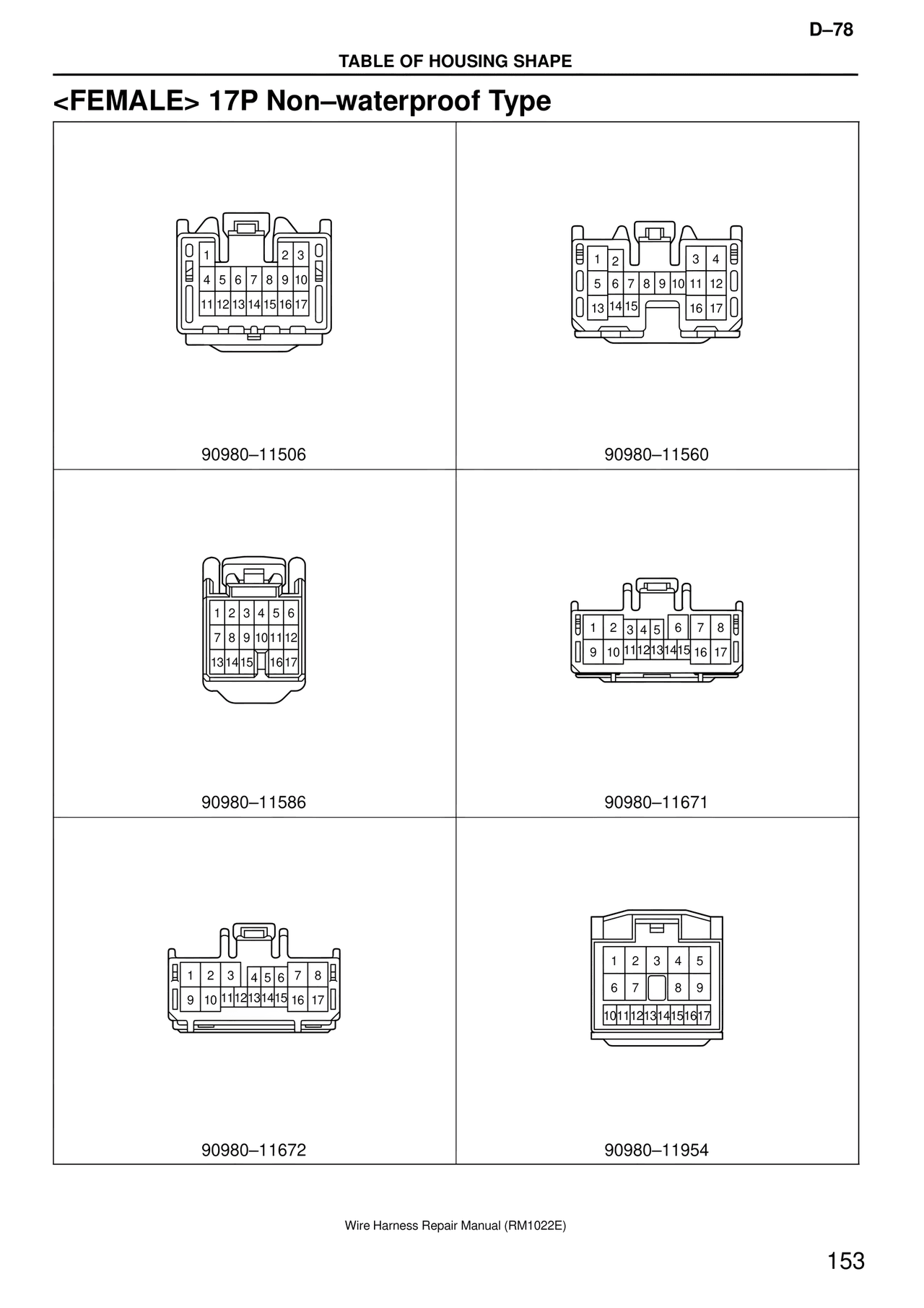

TABLE OF HOUSING SHAPE

<FEMALE> 17P Non–waterproof Type

1    2  3
4  5  6  7  8  9  10
11 12 13 14 15 16 17

90980–11506

1  2        3  4
5  6  7  8  9  10  11  12
13  14  15      16  17

90980–11560

1  2  3  4  5  6
7  8  9  10  11  12
13 14  15    16  17

90980–11586

1  2  3  4  5    6    7  8
9  10  11 12 13 14 15  16  17

90980–11671

1  2  3    4  5  6  7  8
9  10  11 12 13 14 15  16  17

90980–11672

1  2  3  4  5
6  7      8  9
10 11 12 13 14 15 16 17

90980–11954

Wire Harness Repair Manual (RM1022E)

153
