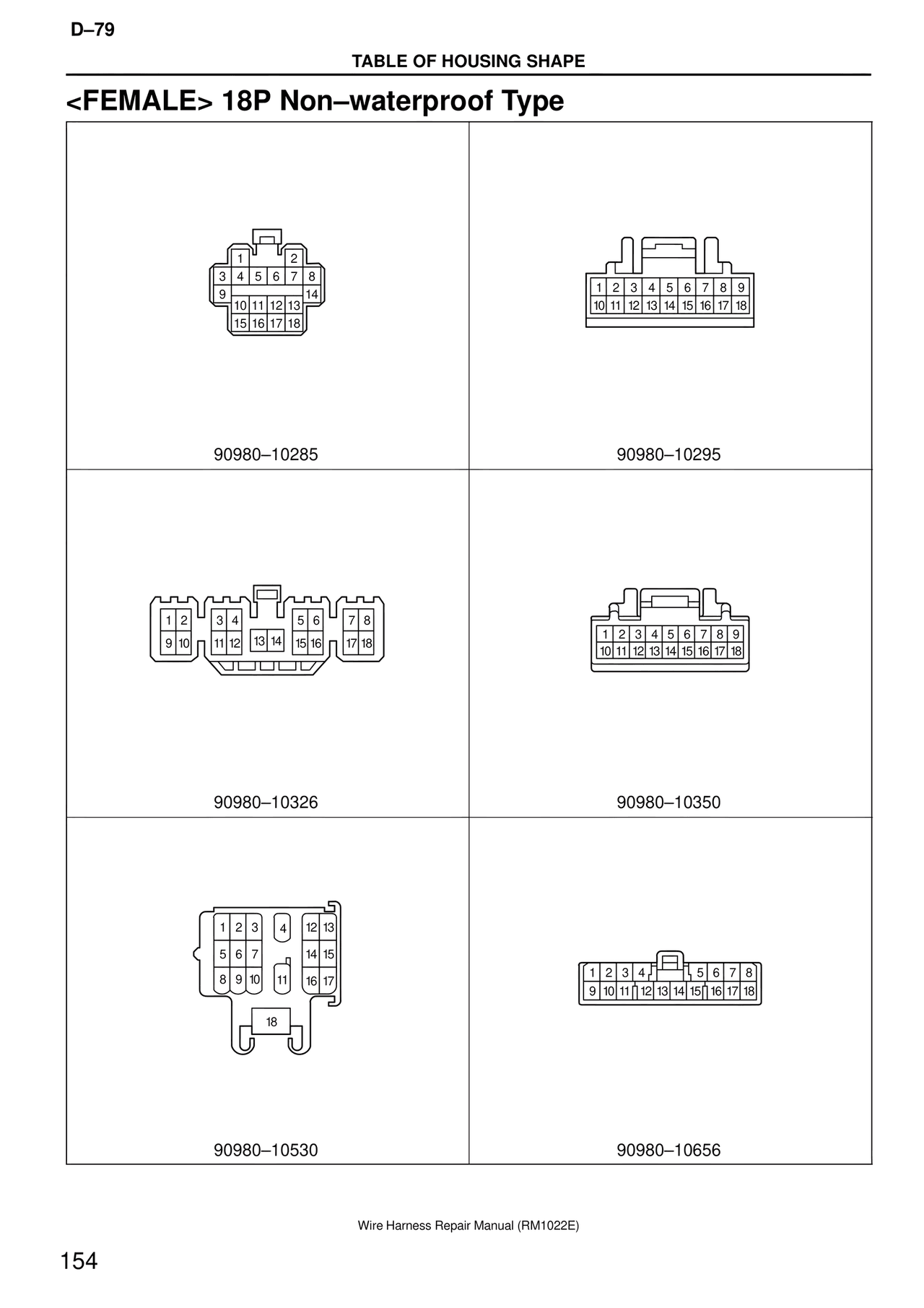

<FEMALE> 18P Non–waterproof Type — MK4 Supra Wire Harness, page 154
100%
D–79 TABLE OF HOUSING SHAPE <FEMALE> 18P Non–waterproof Type 1 2 3 4 5 6 7 8 9 14 10 11 12 13 15 16 17 18 90980–10285 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–10295 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–10326 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–10350 1 2 3 4 12 13 5 6 7 14 15 8 9 10 11 16 17 18 90980–10530 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–10656 Wire Harness Repair Manual (RM1022E) 154
