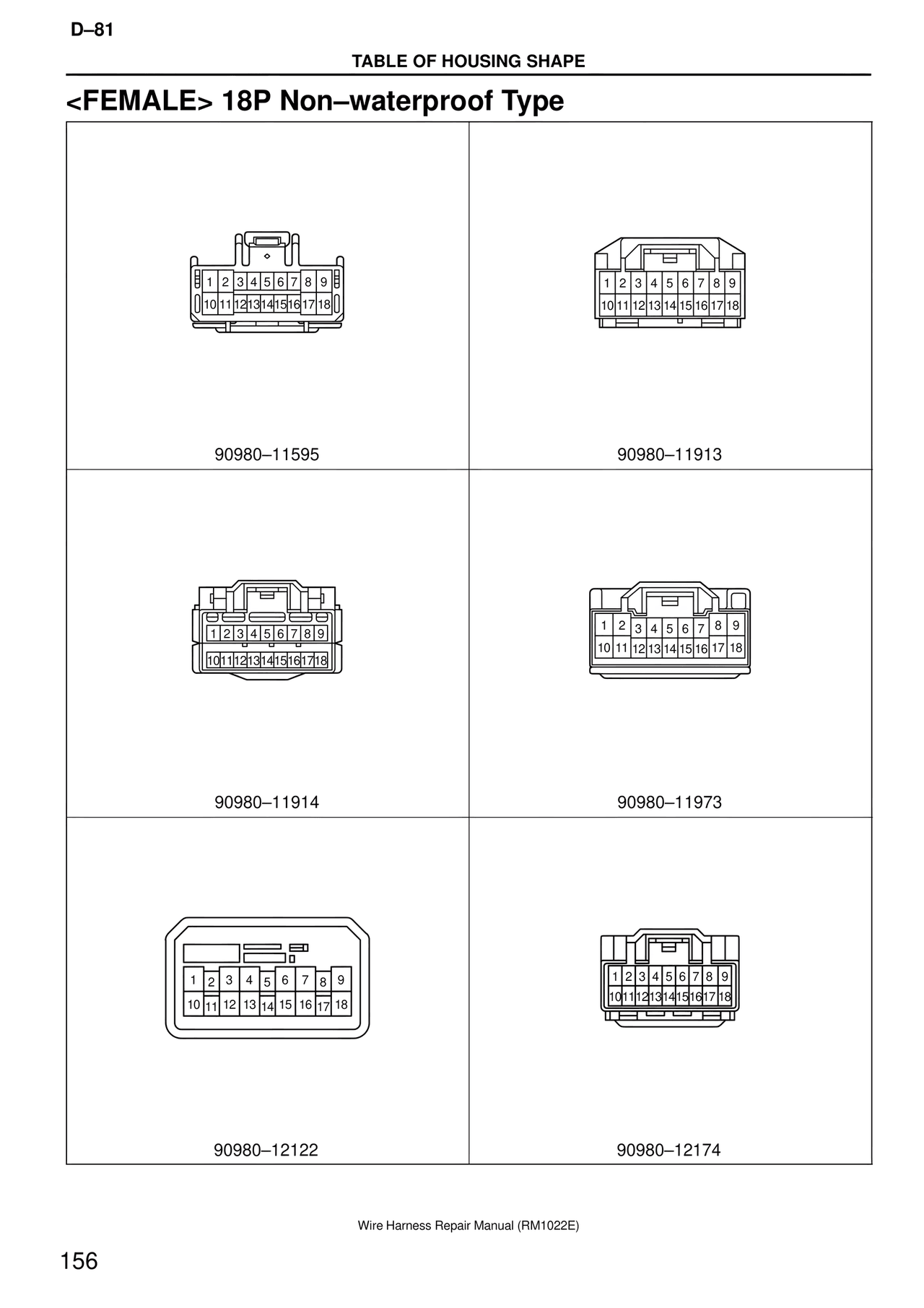

<FEMALE> 18P Non–waterproof Type — MK4 Supra Wire Harness, page 156
100%
D–81 TABLE OF HOUSING SHAPE <FEMALE> 18P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11595 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11913 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11914 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11973 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–12122 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–12174 Wire Harness Repair Manual (RM1022E) 156
