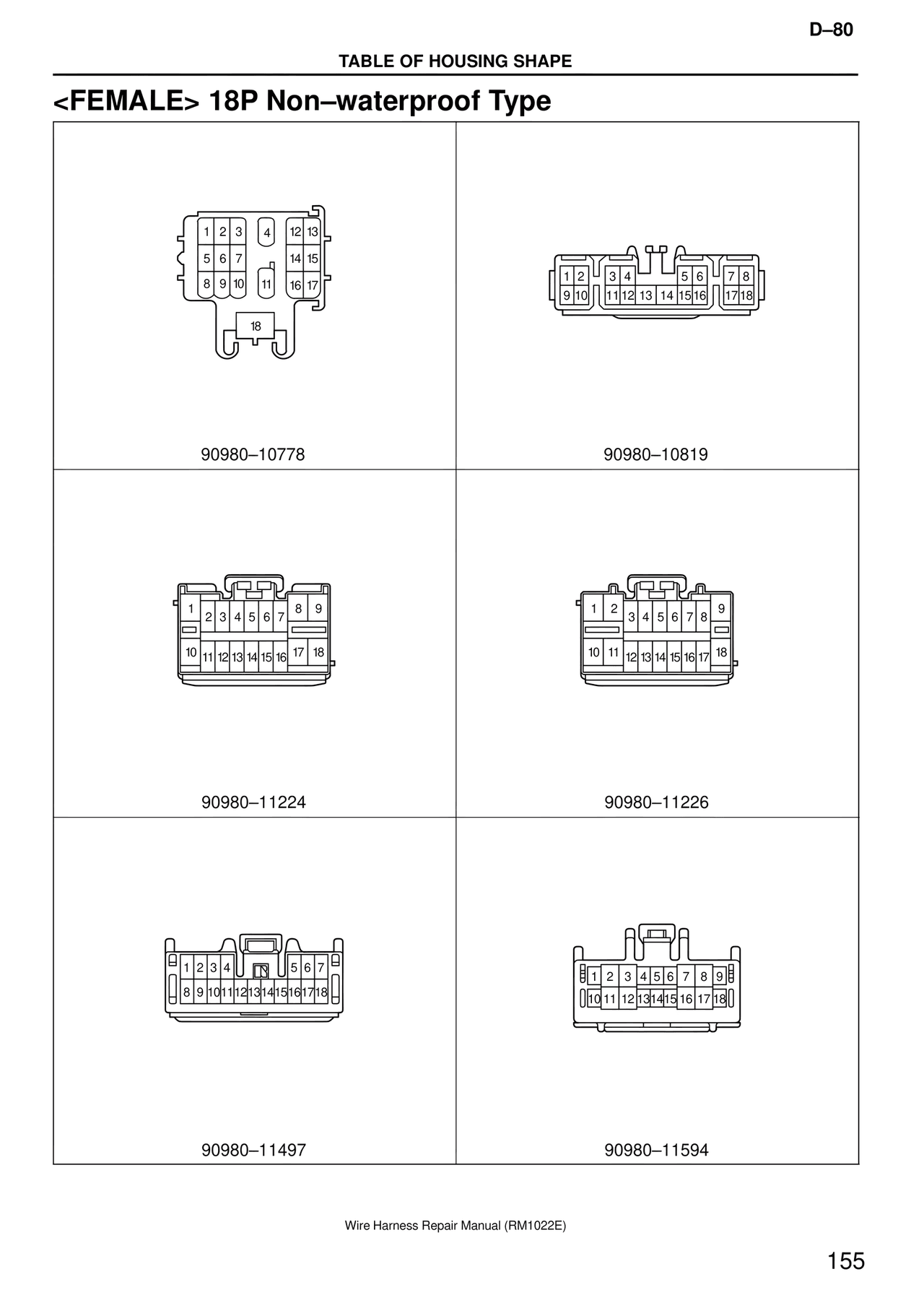

<FEMALE> 18P Non–waterproof Type — MK4 Supra Wire Harness, page 155
100%
D–80 TABLE OF HOUSING SHAPE <FEMALE> 18P Non–waterproof Type 1 2 3 4 12 13 5 6 7 14 15 8 9 10 11 16 17 18 90980–10778 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–10819 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11224 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11226 1 2 3 4 N 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11497 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 90980–11594 Wire Harness Repair Manual (RM1022E) 155
