D–85

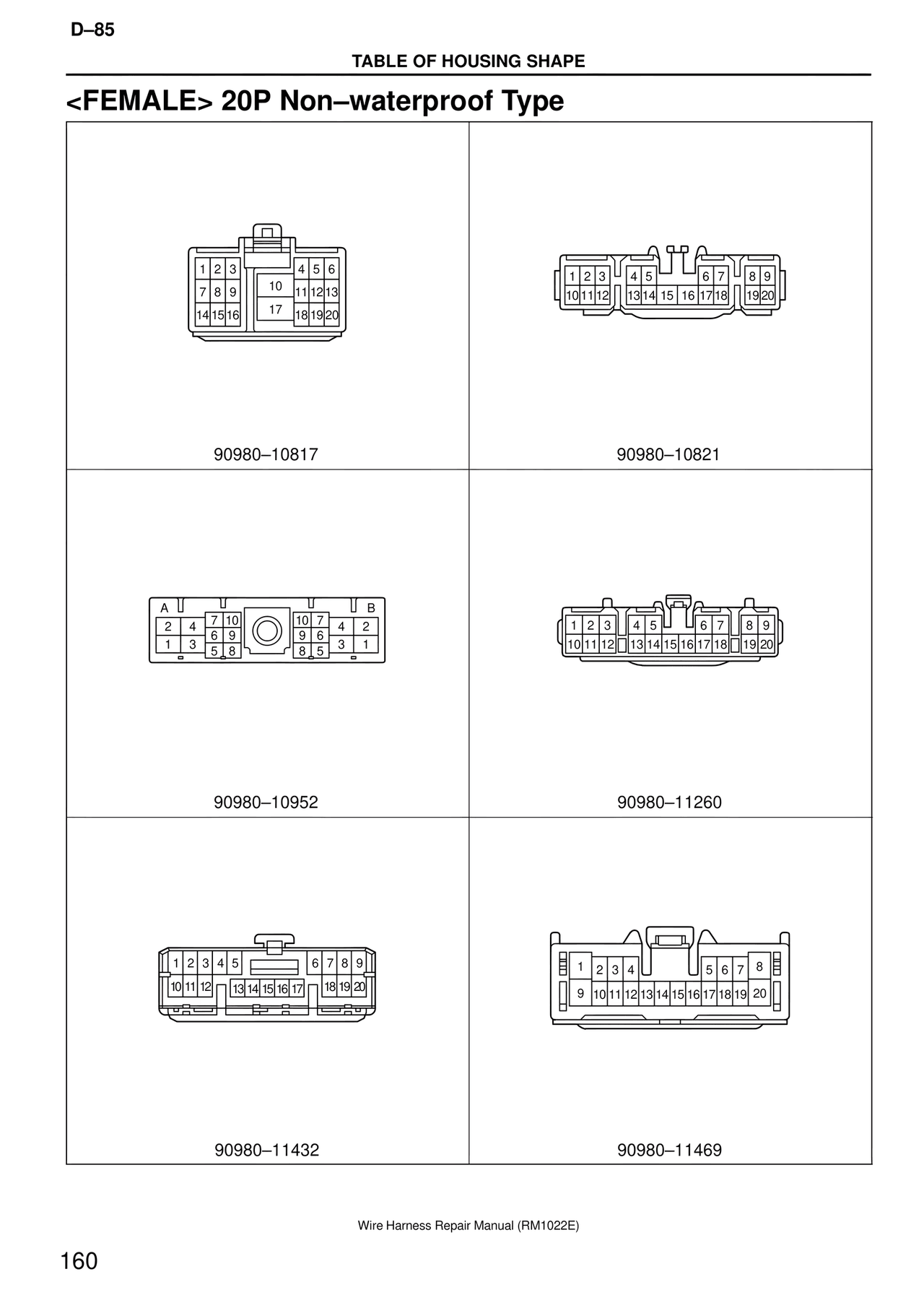

TABLE OF HOUSING SHAPE

<FEMALE> 20P Non–waterproof Type

1 2 3    4 5 6
7 8 9  10  11 12 13
14 15 16   17  18 19 20

90980–10817

1 2 3  4 5   6 7  8 9
10 11 12  13 14 15 16 17 18  19 20

90980–10821

A          B
2  4  7 10   10 7  4  2
   6  9    9 6
1  3  5  8    8 5  3  1

90980–10952

1 2 3  4 5   6 7  8 9
10 11 12  13 14 15 16 17 18  19 20

90980–11260

1 2 3 4 5   6 7 8 9
10 11 12  13 14 15 16 17  18 19 20

90980–11432

1  2 3 4   5 6 7  8
9  10 11 12 13 14 15 16 17 18 19  20

90980–11469

160

Wire Harness Repair Manual (RM1022E)
