D–86

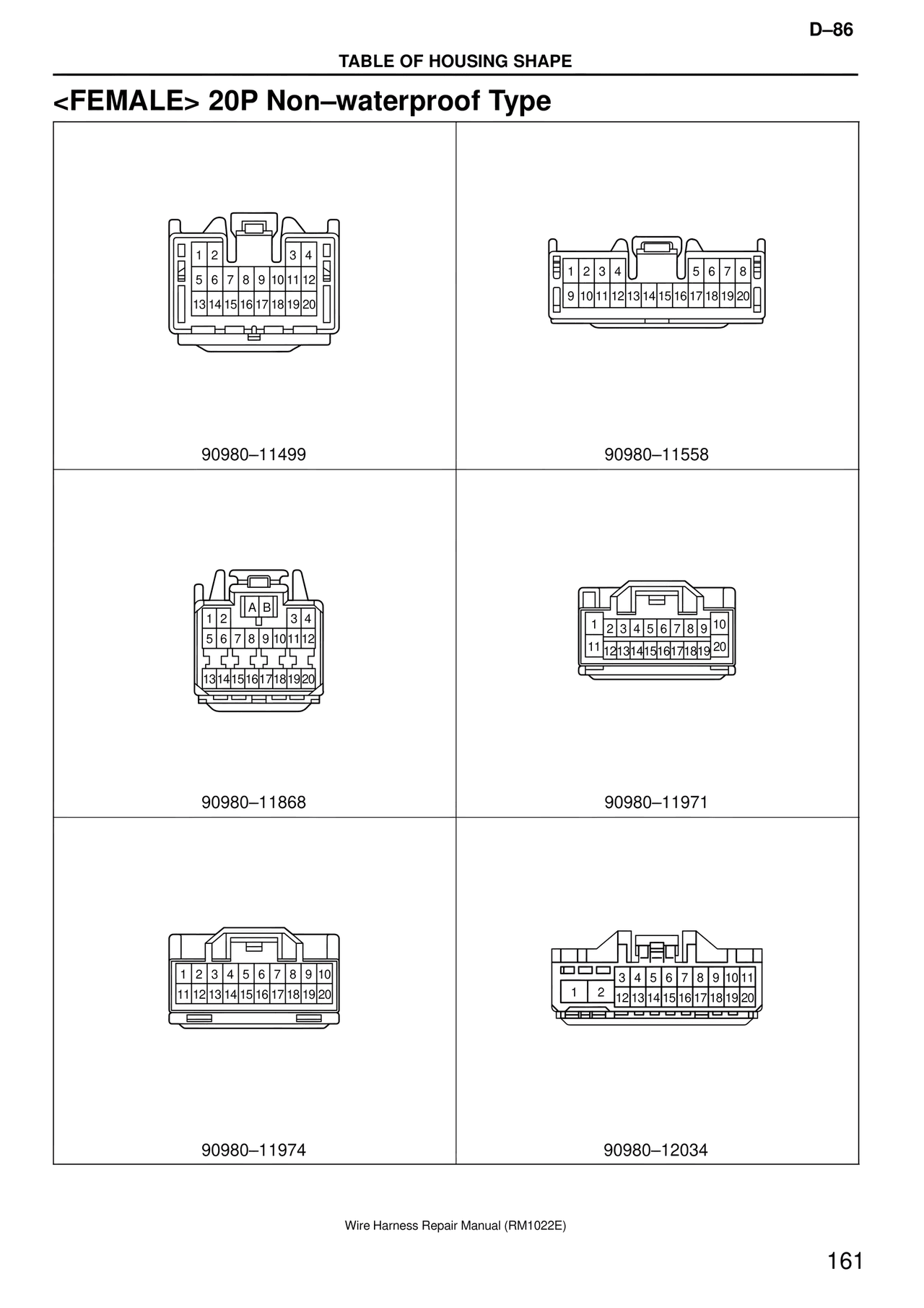

TABLE OF HOUSING SHAPE

<FEMALE> 20P Non–waterproof Type

1  2        3  4
5  6  7  8  9  10 11 12
13 14 15 16 17 18 19 20

90980–11499

1  2  3  4        5  6  7  8
9  10 11 12 13 14 15 16 17 18 19 20

90980–11558

A B
1  2        3  4
5  6  7  8  9  10 11 12
13 14 15 16 17 18 19 20

90980–11868

1  2  3  4  5  6  7  8  9  10
11 12 13 14 15 16 17 18 19 20

90980–11971

1  2  3  4  5  6  7  8  9  10
11 12 13 14 15 16 17 18 19 20

90980–11974

1  2     3  4  5  6  7  8  9  10 11
         12 13 14 15 16 17 18 19 20

90980–12034

Wire Harness Repair Manual (RM1022E)

161
