D–92

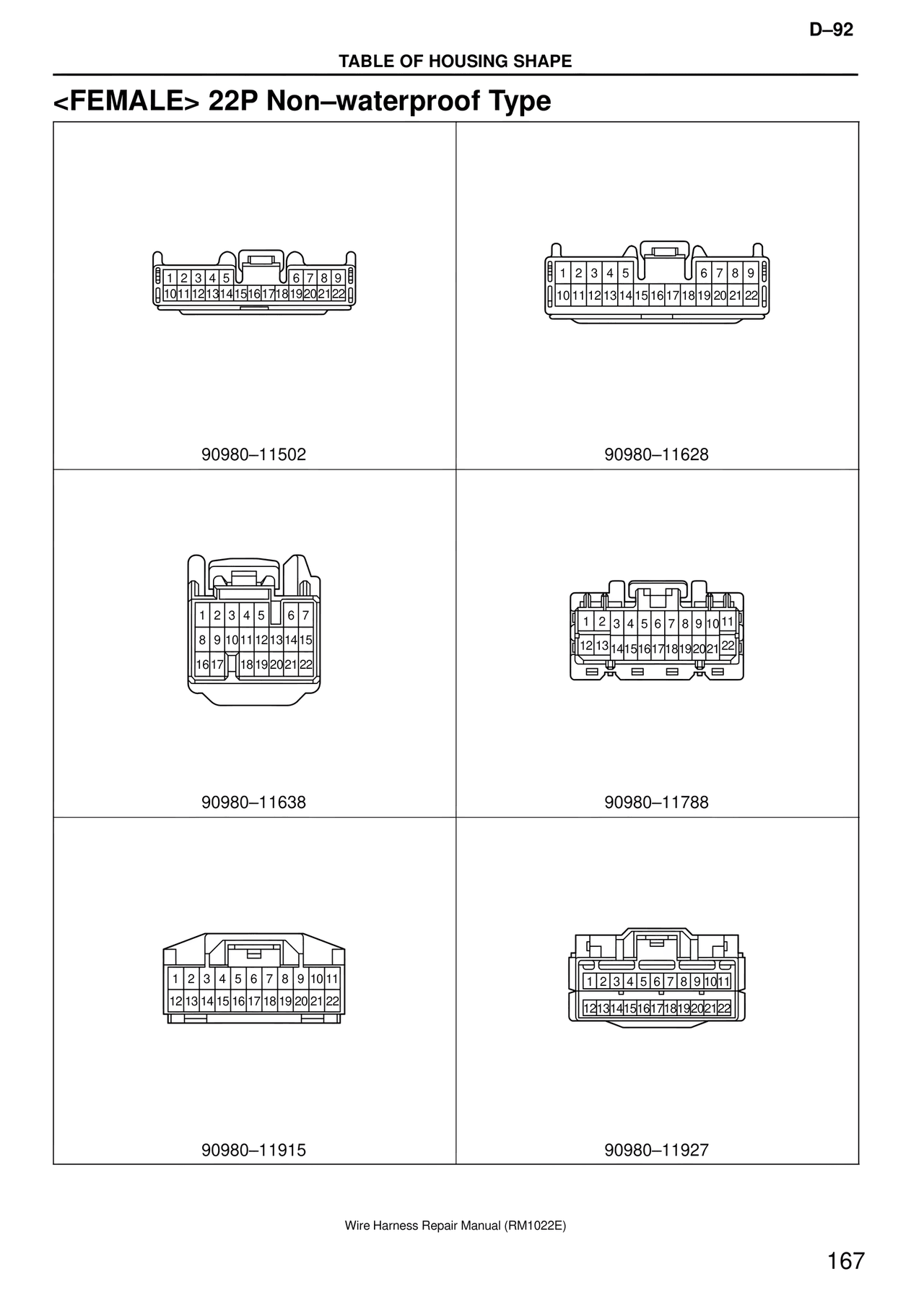

TABLE OF HOUSING SHAPE

<FEMALE> 22P Non–waterproof Type

1 2 3 4 5    6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22

90980–11502

1 2 3 4 5    6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22

90980–11628

1 2 3 4 5  6 7
8 9 10 11 12 13 14 15
16 17   18 19 20 21 22

90980–11638

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21  22

90980–11788

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–11915

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–11927
