WH/Wire Harness — <female> 23P Non–waterproof Type, page 168

D–93

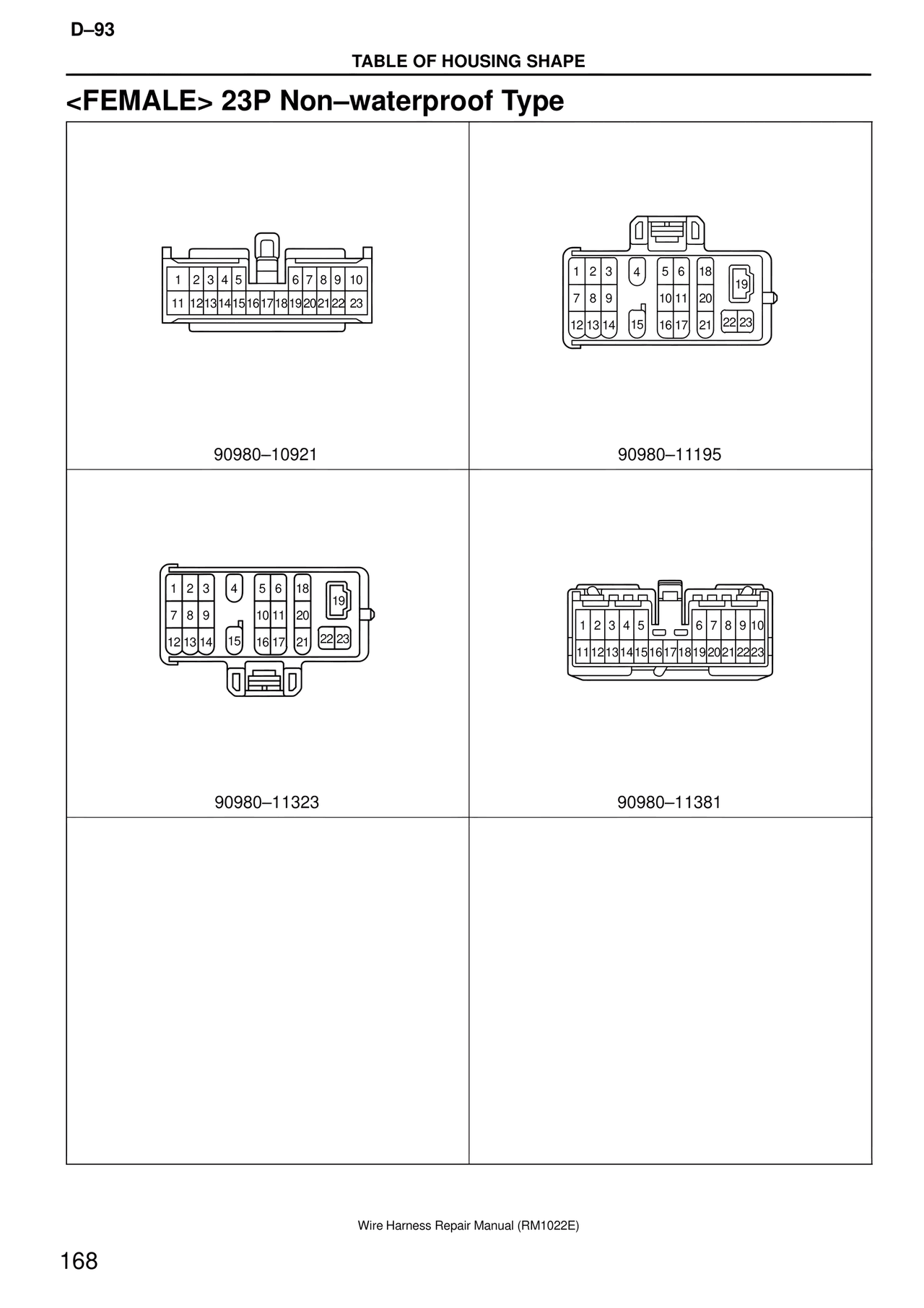

TABLE OF HOUSING SHAPE

<FEMALE> 23P Non–waterproof Type

1 2 3 4 5    6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21 22 23

90980–10921

1 2 3    4    5 6  18      19
7 8 9         10 11  20
12 13 14    15    16 17  21   22 23

90980–11195

1 2 3    4    5 6  18      19
7 8 9         10 11  20
12 13 14    15    16 17  21   22 23

90980–11323

1 2 3 4 5    6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21 22 23

90980–11381
