D–97

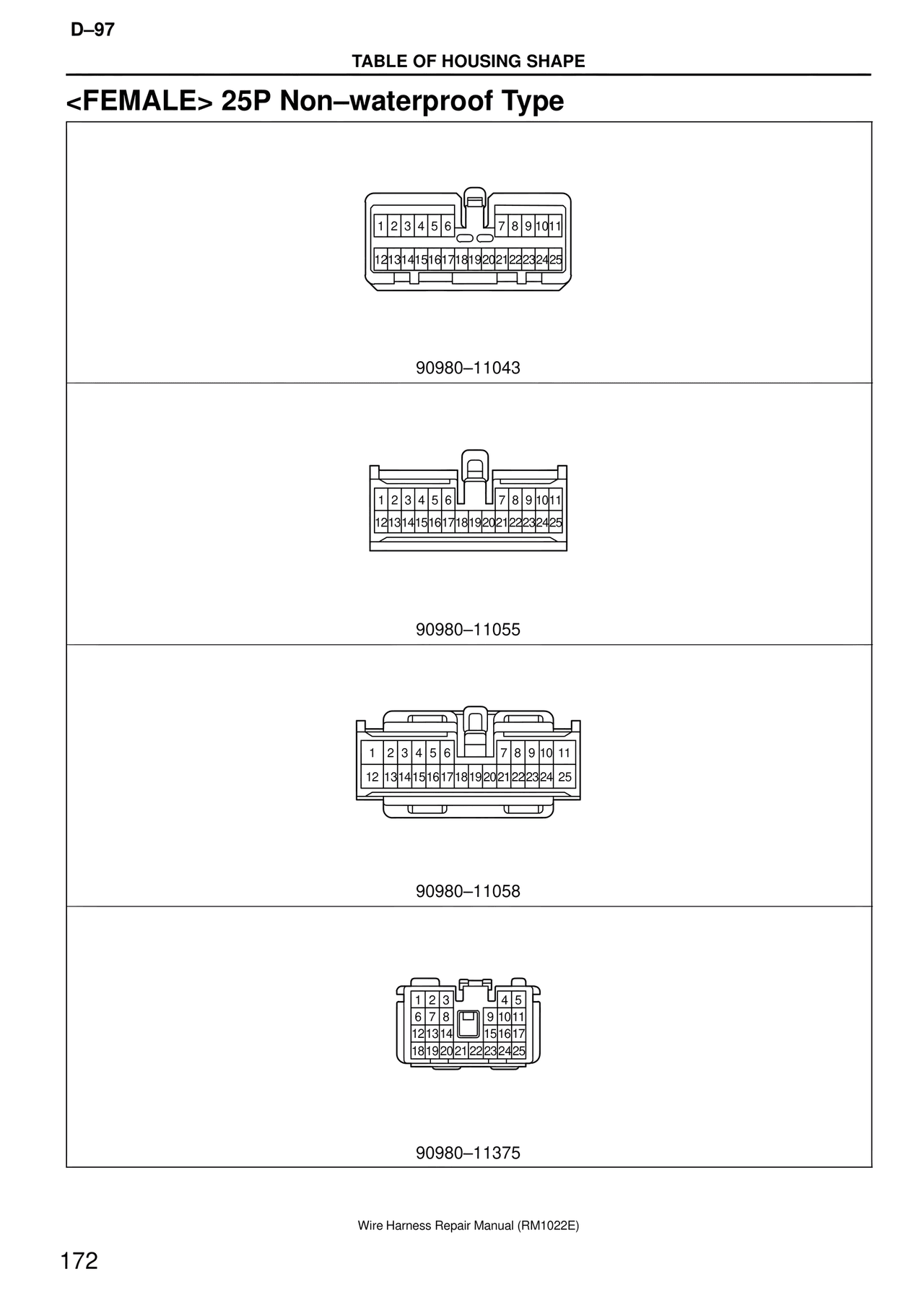

TABLE OF HOUSING SHAPE

<FEMALE> 25P Non–waterproof Type

1 2 3 4 5 6    7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24 25

90980–11043

1 2 3 4 5 6    7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24 25

90980–11055

1  2 3 4 5 6       7 8 9 10 11
12  13 14 15 16 17 18 19 20 21 22 23 24  25

90980–11058

1 2 3    4 5
6 7 8    9 10 11
12 13 14    15 16 17
18 19 20 21 22 23 24 25

90980–11375

Wire Harness Repair Manual (RM1022E)

172
