D–98

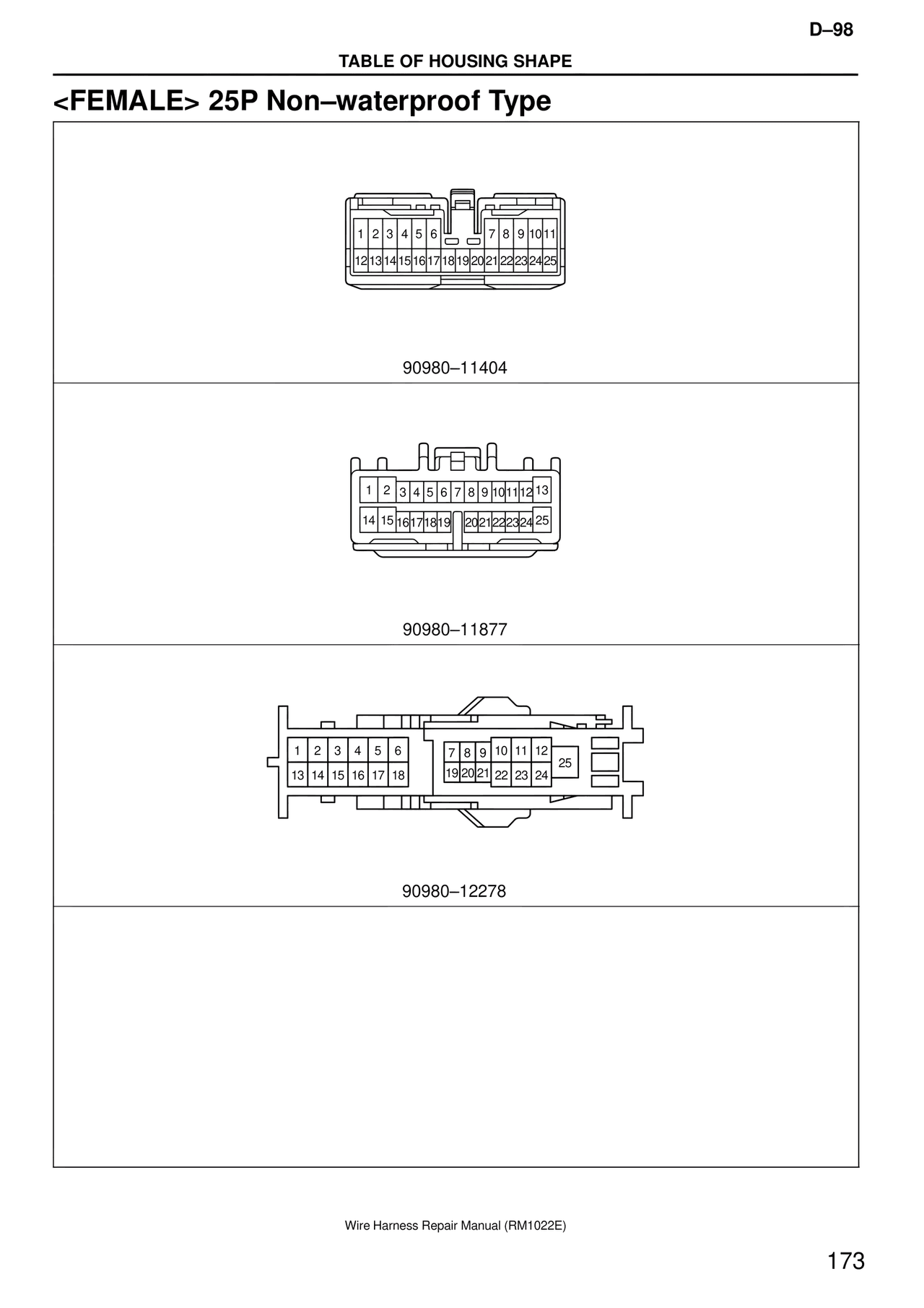

TABLE OF HOUSING SHAPE

<FEMALE> 25P Non–waterproof Type

1 2 3 4 5 6    7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22 23 24 25

90980–11404

1  2  3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19   20 21 22 23 24 25

90980–11877

1  2  3  4  5  6     7  8  9  10  11  12
13 14 15 16 17 18   19 20 21  22  23  24    25

90980–12278

Wire Harness Repair Manual (RM1022E)

173
