<FEMALE> 26P Non–waterproof Type — MK4 Supra Wire Harness, page 176
100%

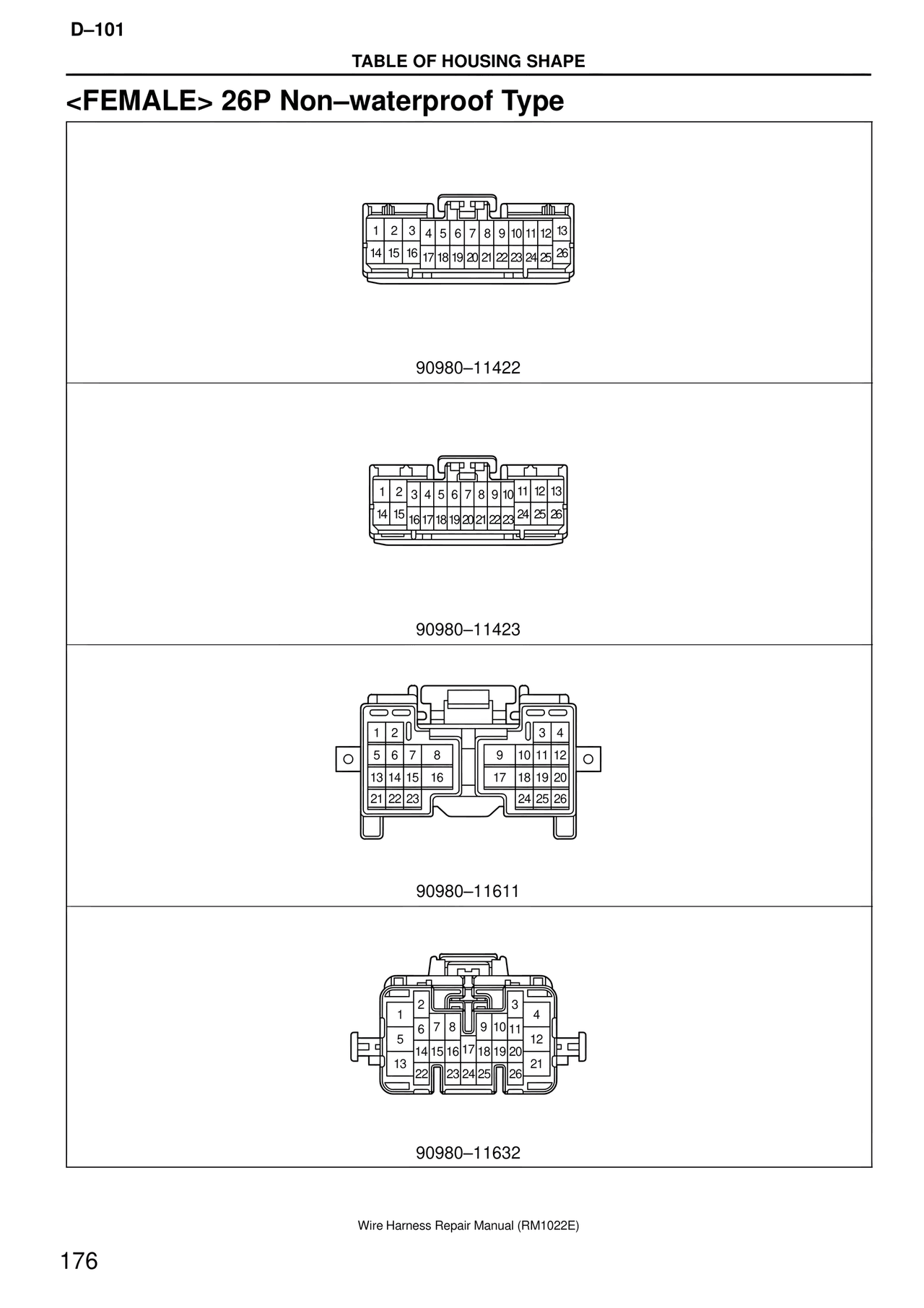

D–101 TABLE OF HOUSING SHAPE <FEMALE> 26P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–11422 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–11423 1 2 5 6 7 8 13 14 15 16 21 22 23 3 4 9 10 11 12 17 18 19 20 24 25 26 90980–11611 2 3 1 6 7 8 9 10 11 5 14 15 16 17 18 19 20 13 22 23 24 25 26 4 12 21 90980–11632 Wire Harness Repair Manual (RM1022E) 176
