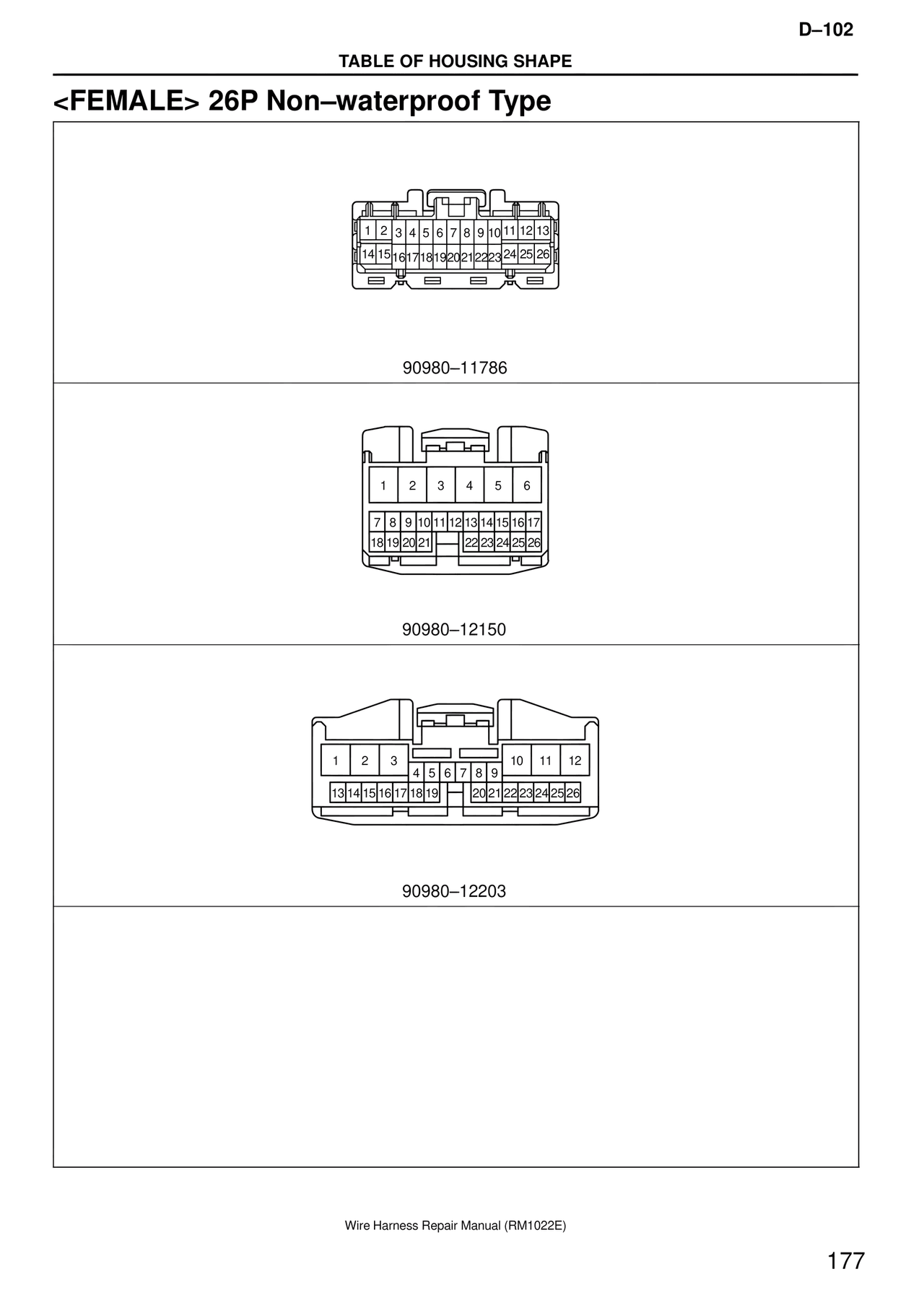

<FEMALE> 26P Non–waterproof Type — MK4 Supra Wire Harness, page 177
100%
D–102 TABLE OF HOUSING SHAPE <FEMALE> 26P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–11786 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–12150 1 2 3 10 11 12 4 5 6 7 8 9 13 14 15 16 17 18 19 20 21 22 23 24 25 26 90980–12203 Wire Harness Repair Manual (RM1022E) 177
