TSRM/MK4 Supra/Repair Manual
Repair ManualWiring Diagrams
p.178
WH/Wire Harness179 / 414
p.180
<FEMALE> 28P Non–waterproof Type — MK4 Supra Wire Harness, page 179
100%

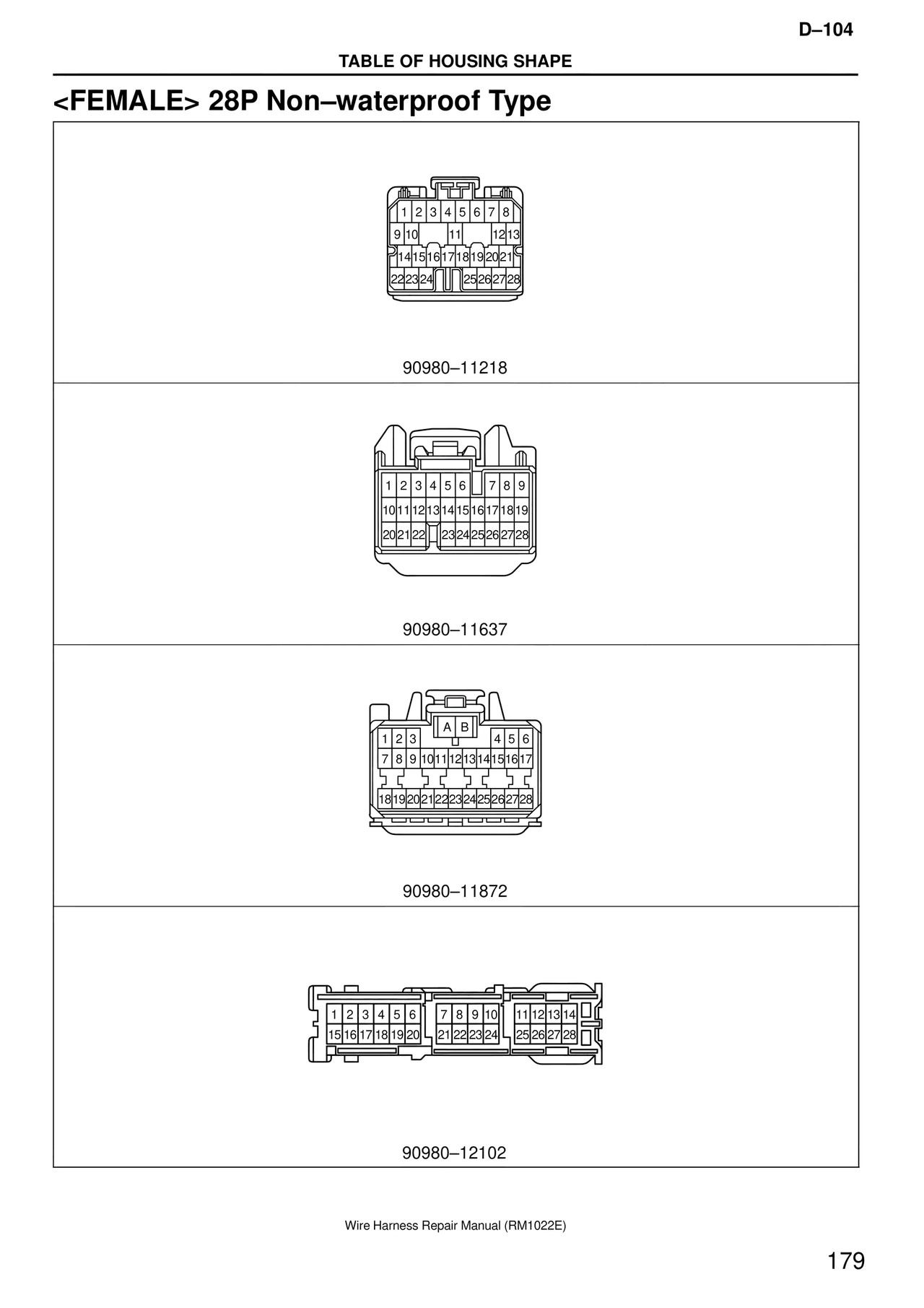

D–104 TABLE OF HOUSING SHAPE <FEMALE> 28P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 90980–11218 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 90980–11637 A B 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 90980–11872 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 90980–12102 Wire Harness Repair Manual (RM1022E) 179
