TSRM/MK4 Supra/Repair Manual
Repair ManualWiring Diagrams
p.179
WH/Wire Harness180 / 414
p.181

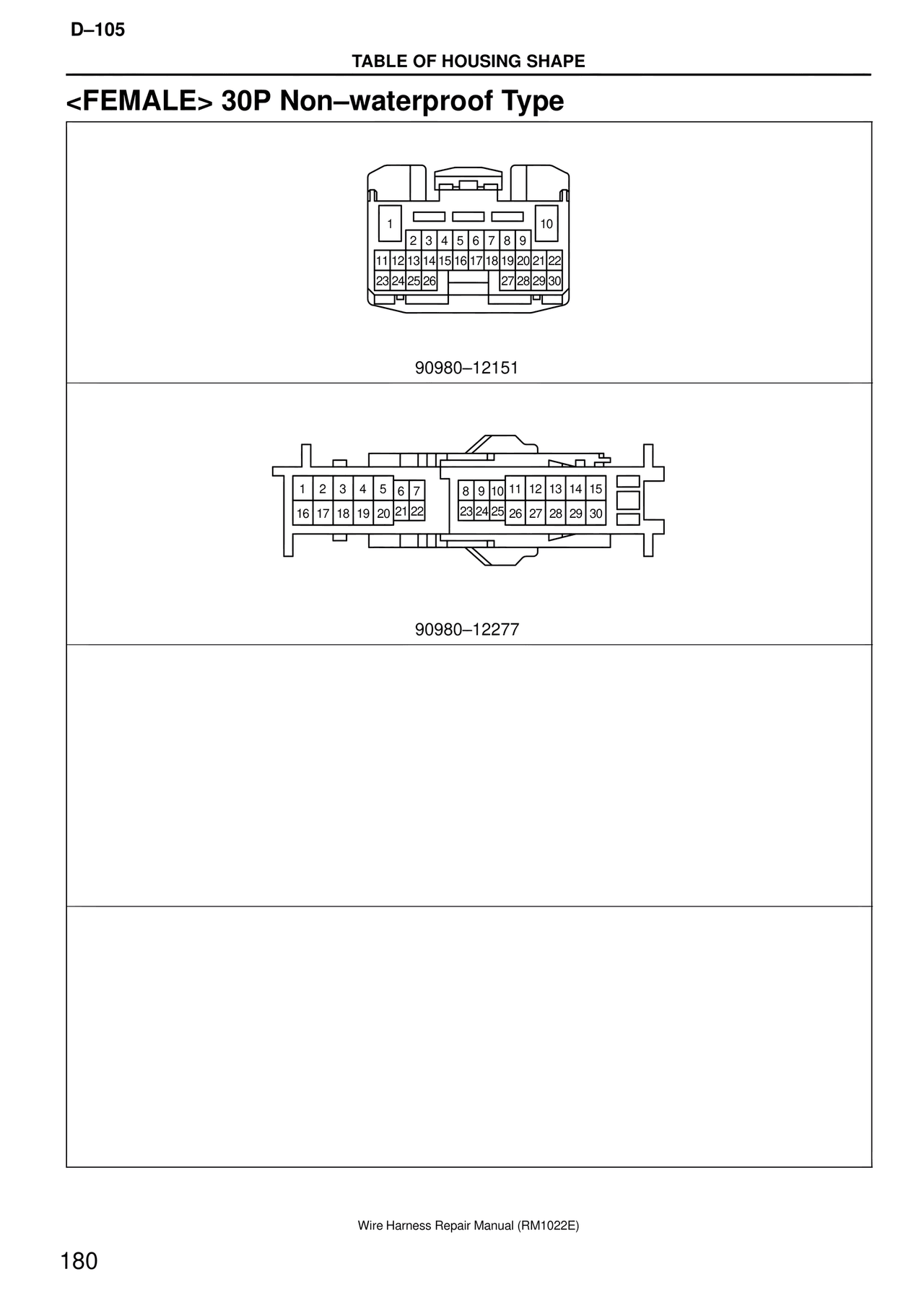

<FEMALE> 30P Non–waterproof Type — MK4 Supra Wire Harness, page 180
100%
D–105 TABLE OF HOUSING SHAPE <FEMALE> 30P Non–waterproof Type 1 10 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 90980–12151 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 90980–12277 Wire Harness Repair Manual (RM1022E) 180
