D–109

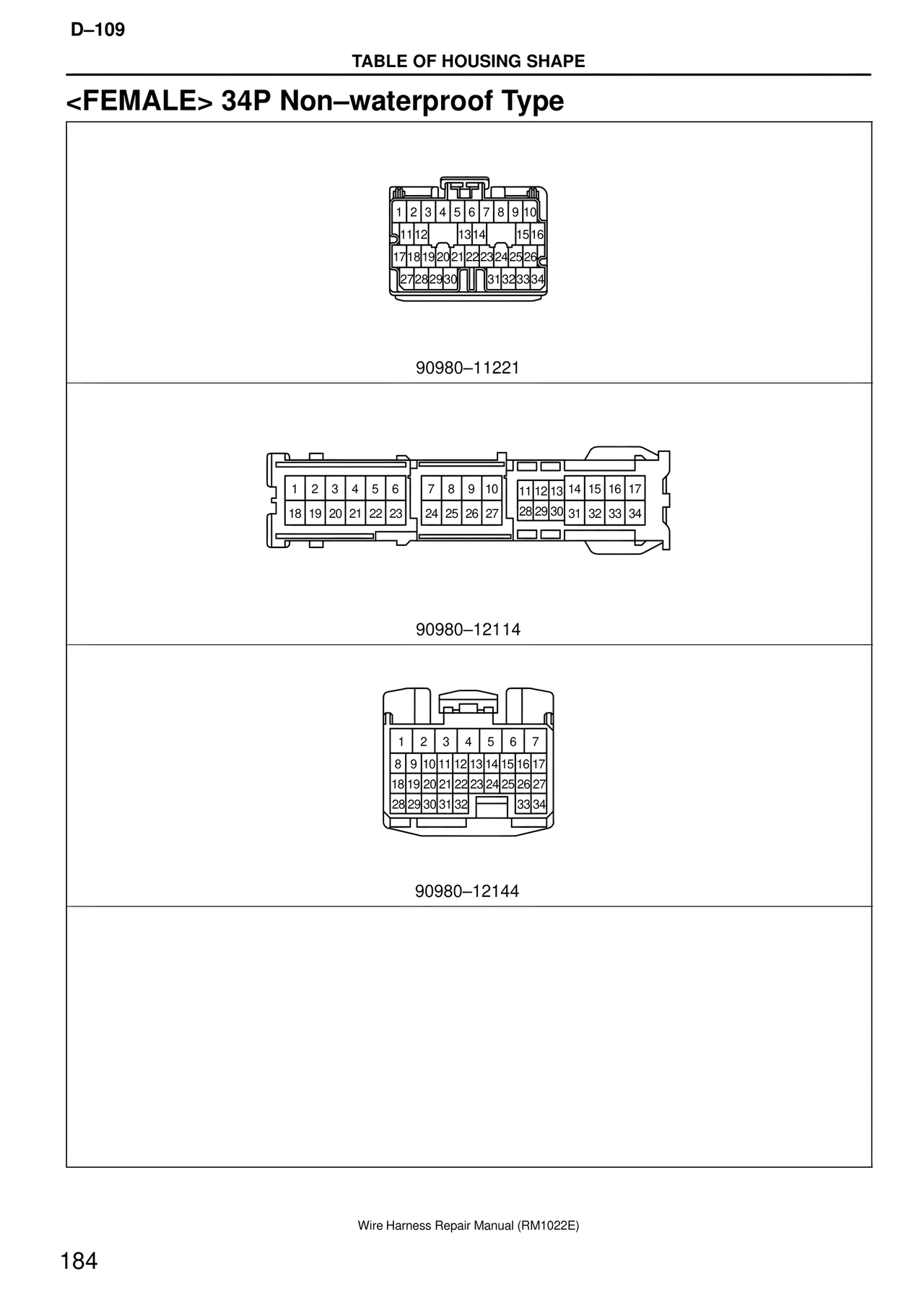

TABLE OF HOUSING SHAPE

<FEMALE> 34P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10
11 12    13 14    15 16
17 18 19 20 21 22 23 24 25 26
27 28 29 30    31 32 33 34

90980–11221

1  2  3  4  5  6    7  8  9  10    11 12 13  14  15  16  17
18 19 20 21 22 23   24 25 26 27   28 29 30  31  32  33  34

90980–12114

1  2  3  4  5  6  7
8  9 10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27
28 29 30 31 32          33 34

90980–12144

Wire Harness Repair Manual (RM1022E)

184
