WH/Wire Harness — <female> 35P, 36P Non–waterproof Type, page 185

D–110

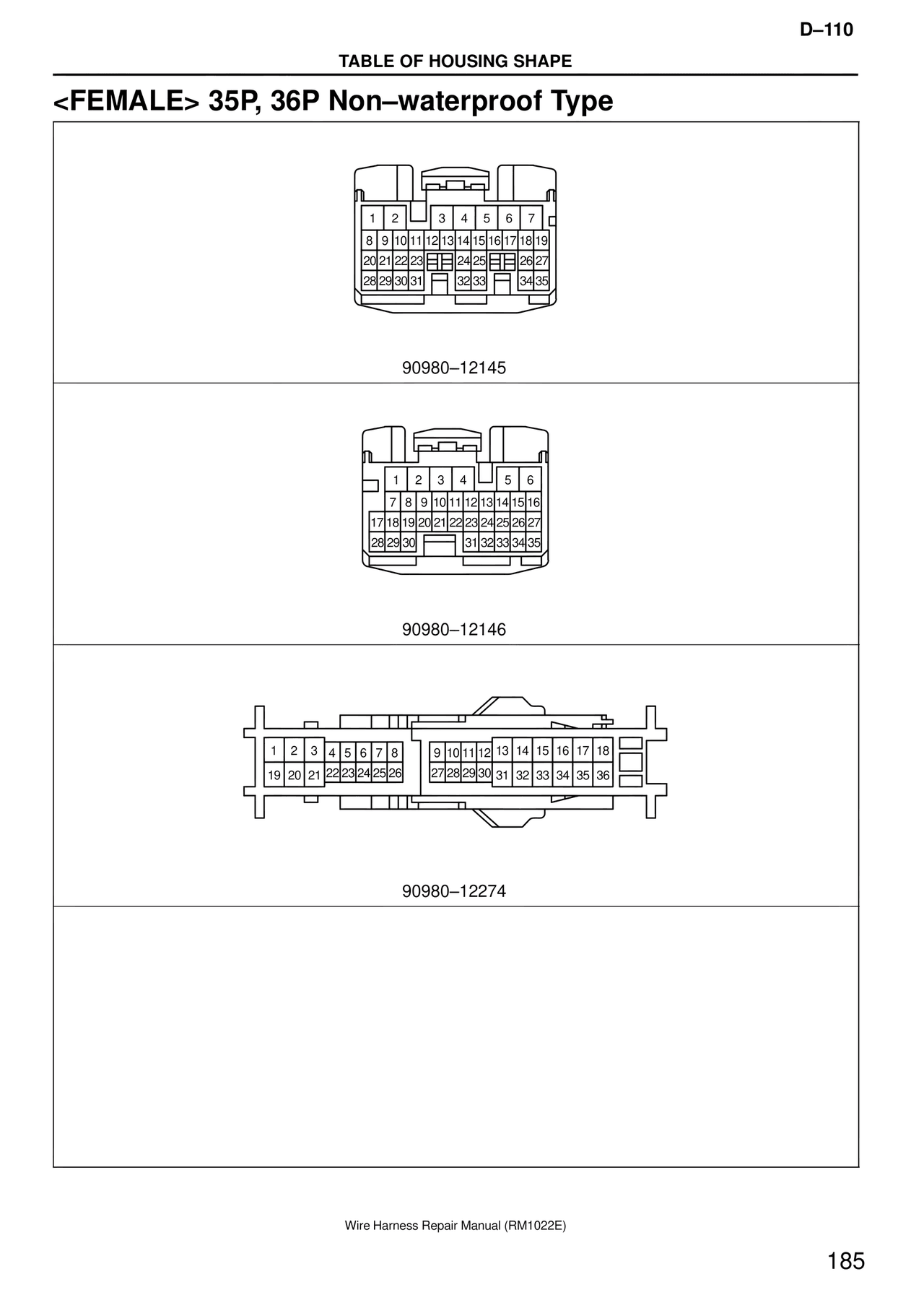

TABLE OF HOUSING SHAPE

<FEMALE> 35P, 36P Non–waterproof Type

1  2    3  4  5  6  7
8  9 10 11 12 13 14 15 16 17 18 19
20 21 22 23    24 25    26 27
28 29 30 31    32 33    34 35

90980–12145

1  2  3  4    5  6
7  8  9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27
28 29 30    31 32 33 34 35

90980–12146

1  2  3  4  5  6  7  8    9 10 11 12  13  14 15 16 17 18
19 20 21  22 23 24 25 26  27 28 29 30  31  32 33 34 35 36

90980–12274

Wire Harness Repair Manual (RM1022E)

185
