D–111

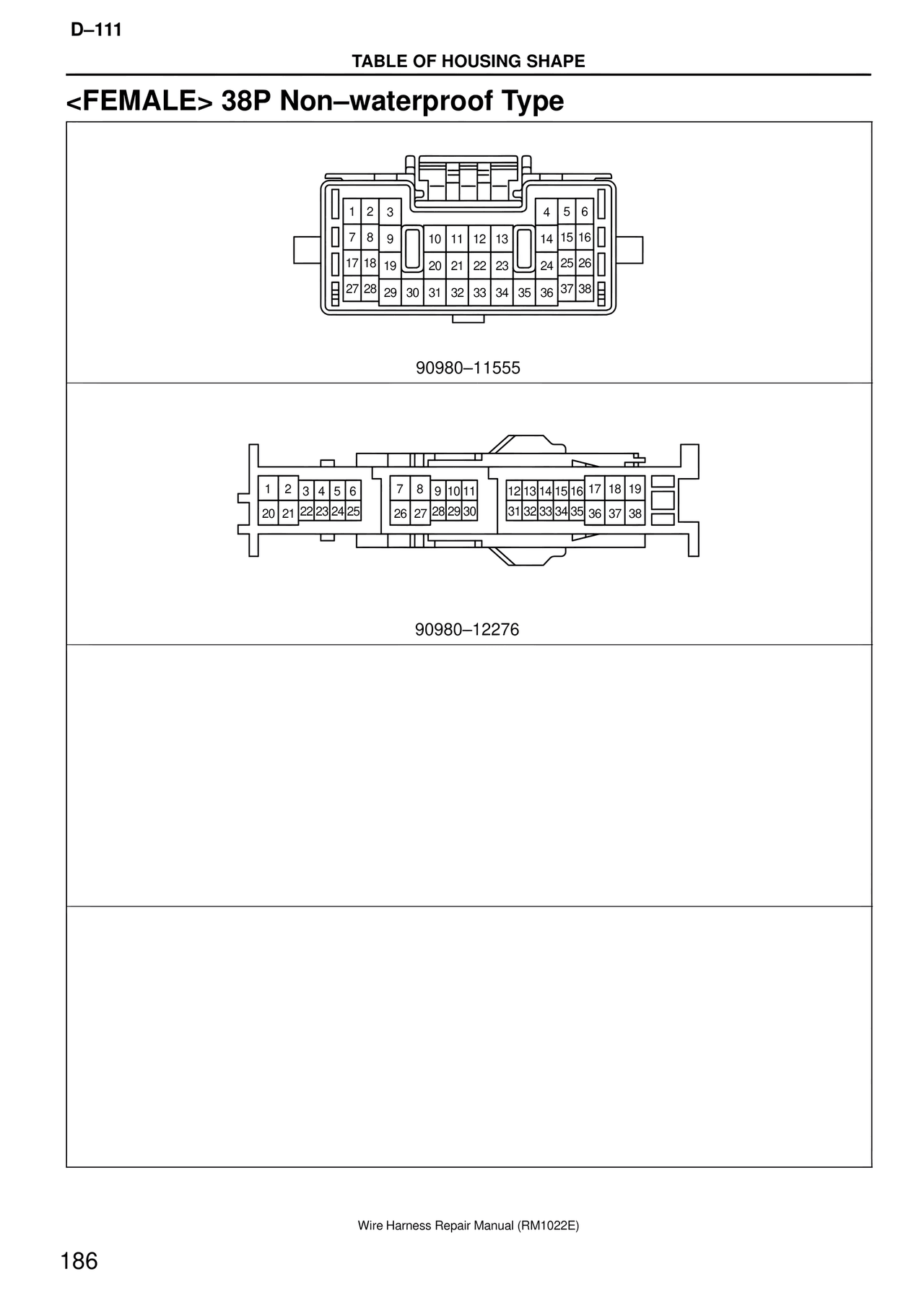

TABLE OF HOUSING SHAPE

<FEMALE> 38P Non–waterproof Type

1  2  3                    4  5  6
7  8  9    10  11  12  13    14  15  16
17  18  19    20  21  22  23    24  25  26
27  28  29  30  31  32  33  34  35  36  37  38

90980–11555

1  2  3  4  5  6        7  8  9  10  11        12  13  14  15  16  17    18  19
20  21    22  23  24  25        26  27    28  29  30        31  32  33  34  35    36  37  38

90980–12276

Wire Harness Repair Manual (RM1022E)
