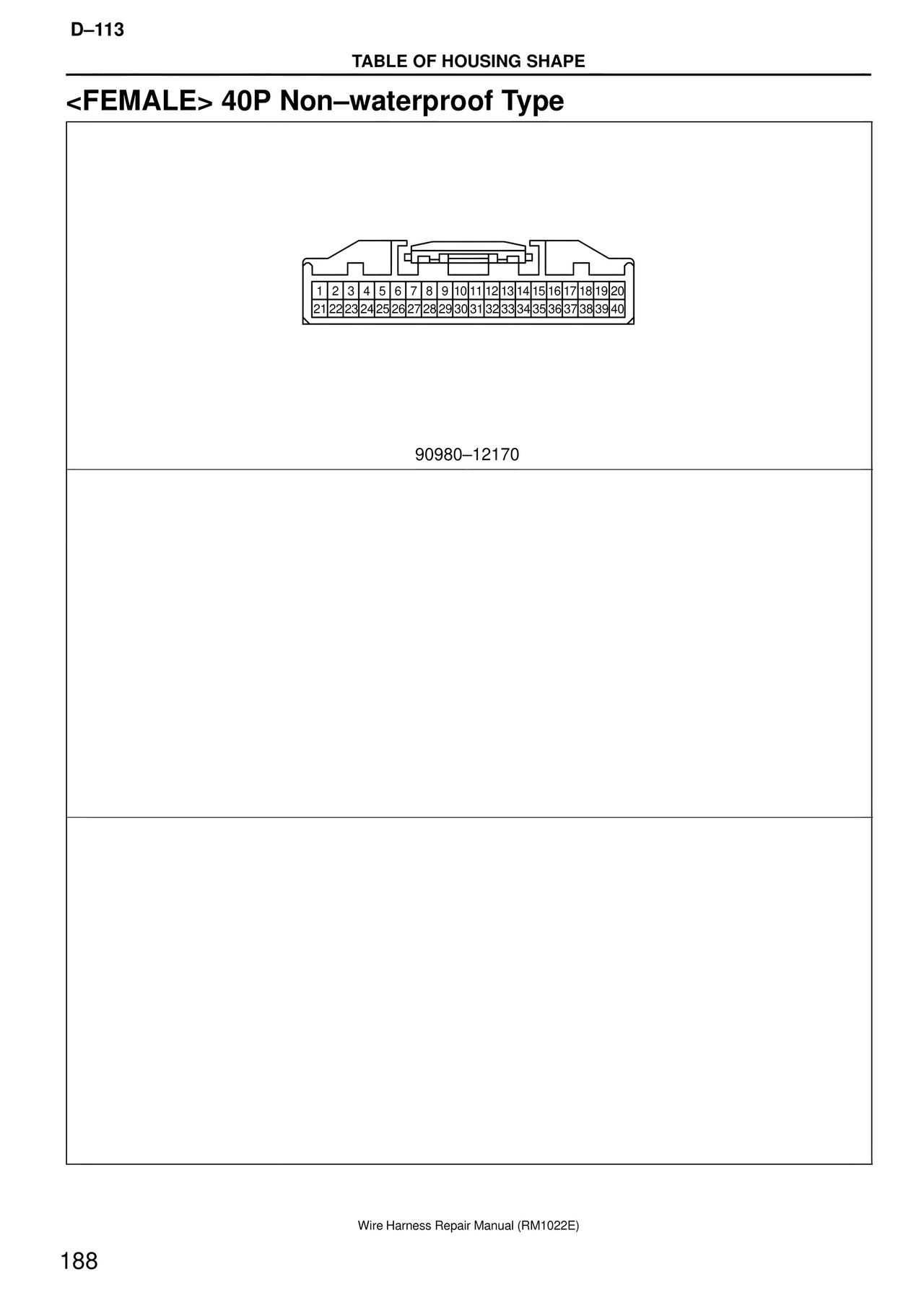

<FEMALE> 40P Non–waterproof Type — MK4 Supra Wire Harness, page 188
100%
D–113 TABLE OF HOUSING SHAPE <FEMALE> 40P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 90980–12170 Wire Harness Repair Manual (RM1022E) 188
