D–114

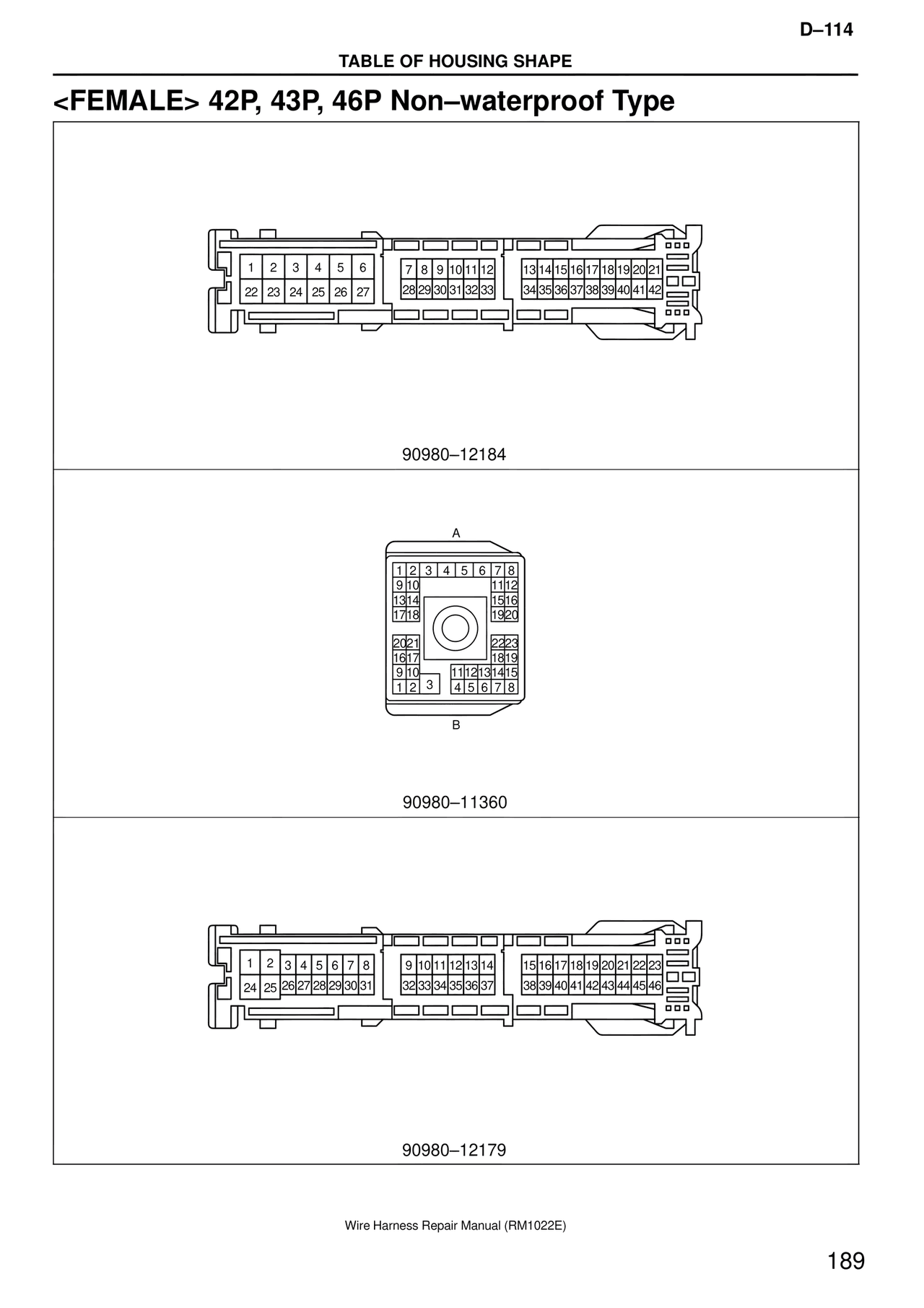

TABLE OF HOUSING SHAPE

<FEMALE> 42P, 43P, 46P Non–waterproof Type

1 2 3 4 5 6
22 23 24 25 26 27

7 8 9 10 11 12
28 29 30 31 32 33

13 14 15 16 17 18 19 20 21
34 35 36 37 38 39 40 41 42

90980–12184

A

1 2 3 4 5 6 7 8
9 10                11 12
13 14              15 16
17 18              19 20

20 21          22 23
16 17          18 19
9 10
1 2 3    11 12 13 14 15
         4 5 6 7 8

B

90980–11360

1 2  3 4 5 6 7 8    9 10 11 12 13 14    15 16 17 18 19 20 21 22 23
24 25  26 27 28 29 30 31    32 33 34 35 36 37    38 39 40 41 42 43 44 45 46

90980–12179

Wire Harness Repair Manual (RM1022E)

189
