B–9

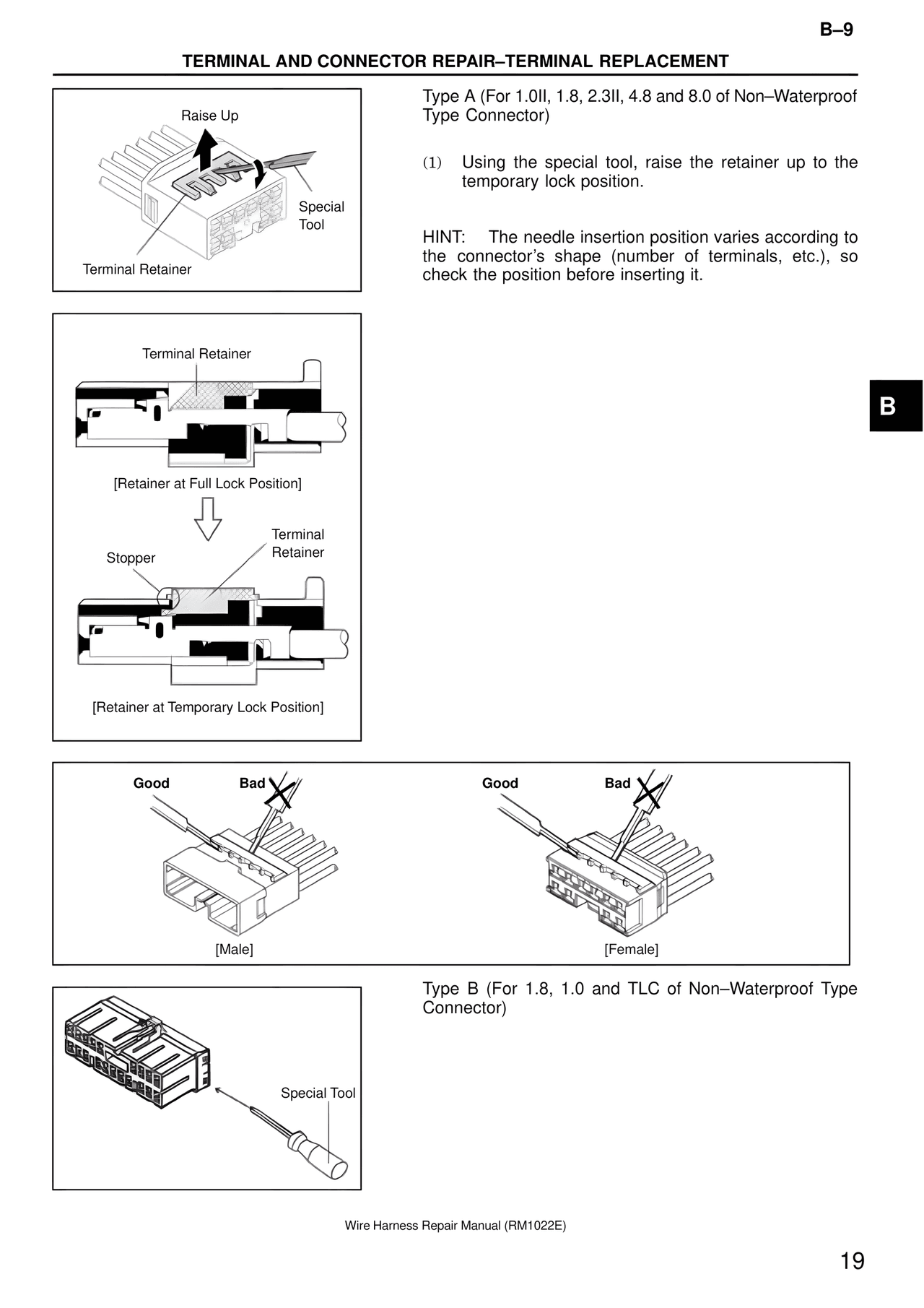

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

Raise Up

Special
Tool

Terminal Retainer

Type A (For 1.0II, 1.8, 2.3II, 4.8 and 8.0 of Non–Waterproof
Type Connector)

(1)    Using the special tool, raise the retainer up to the
        temporary lock position.

HINT:    The needle insertion position varies according to
the connector's shape (number of terminals, etc.), so
check the position before inserting it.

Terminal Retainer

[Retainer at Full Lock Position]

Stopper

Terminal
Retainer

[Retainer at Temporary Lock Position]

Good    Bad

[Male]

Good    Bad

[Female]

Type B (For 1.8, 1.0 and TLC of Non–Waterproof Type
Connector)

Special Tool

Wire Harness Repair Manual (RM1022E)

19

B
