D–117

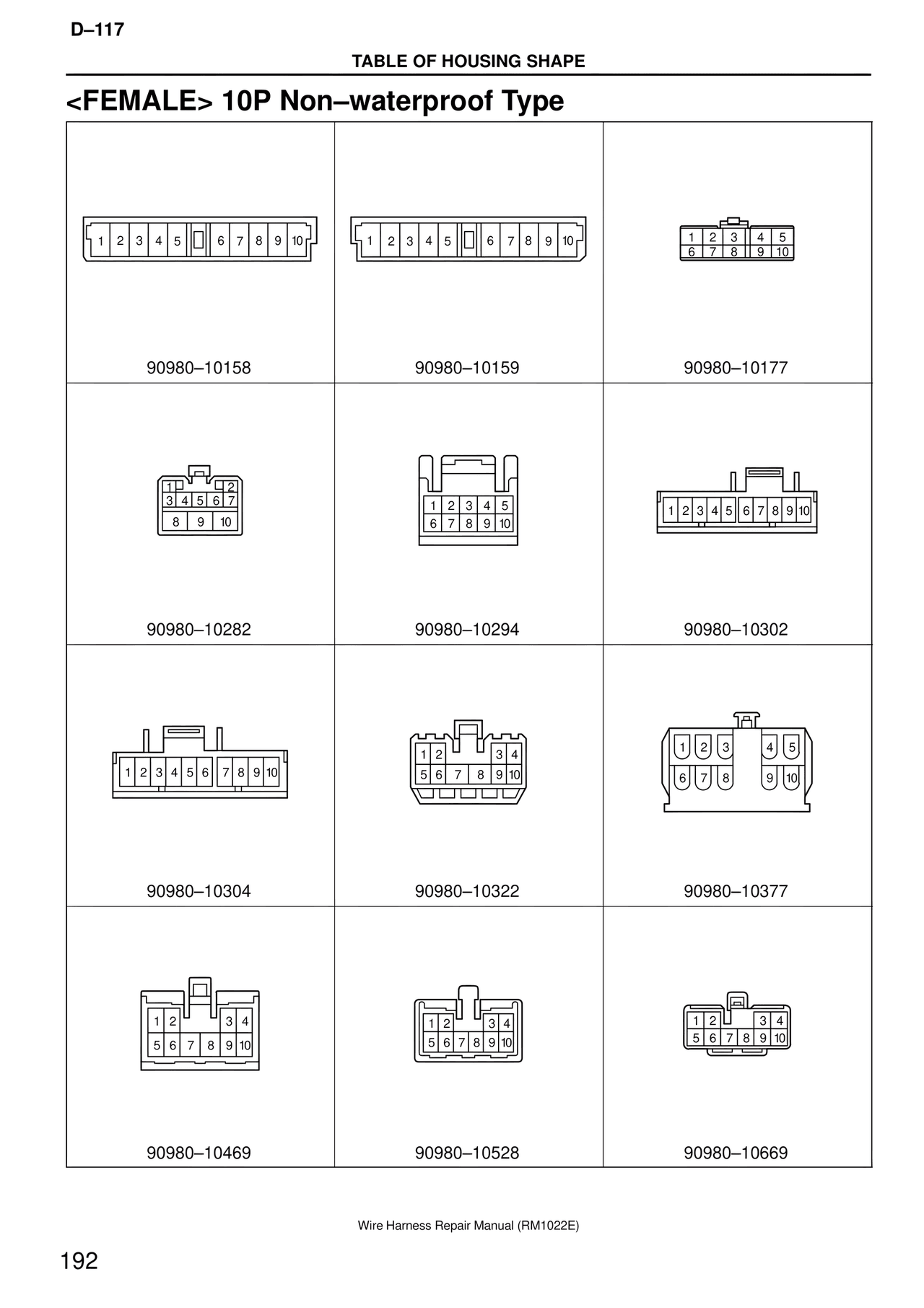

TABLE OF HOUSING SHAPE

<FEMALE> 10P Non–waterproof Type

1  2  3  4  5     6  7  8  9  10

90980–10158

1  2  3  4  5     6  7  8  9  10

90980–10159

1  2  3  4  5
6  7  8  9  10

90980–10177

1        2
3  4  5  6  7
8    9    10

90980–10282

1  2  3  4  5
6  7  8  9  10

90980–10294

1  2  3  4  5  6  7  8  9  10

90980–10302

1  2  3  4  5  6  7  8  9  10

90980–10304

1  2    3  4
5  6  7  8  9  10

90980–10322

1  2  3    4  5
6  7  8    9  10

90980–10377

1  2    3  4
5  6  7  8  9  10

90980–10469

1  2    3  4
5  6  7  8  9  10

90980–10528

1  2    3  4
5  6  7  8  9  10

90980–10669

Wire Harness Repair Manual (RM1022E)

192
