D–118

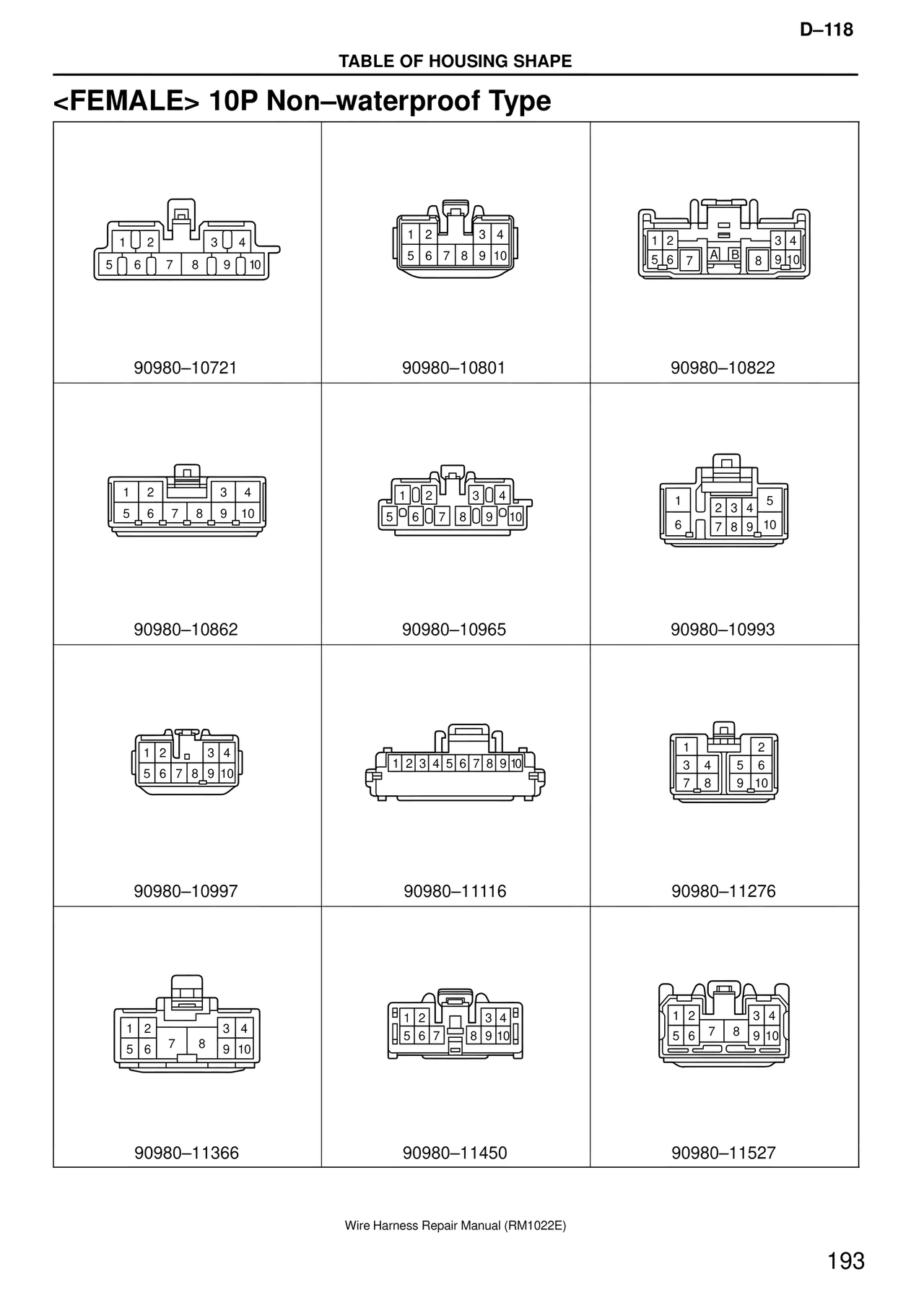

TABLE OF HOUSING SHAPE

<FEMALE> 10P Non–waterproof Type

1  2     3  4
5  6  7  8  9  10

90980–10721

1  2     3  4
5  6  7  8  9  10

90980–10801

1 2        3  4
5 6  7  A  B  8  9 10

90980–10822

1  2        3  4
5  6  7  8  9  10

90980–10862

1  2     3  4
5  6  7  8  9  10

90980–10965

1           5
  2  3  4
6     7  8  9  10

90980–10993

1  2     3  4
5  6  7  8  9 10

90980–10997

1  2  3  4  5  6  7  8  9  10

90980–11116

1        2
3  4     5  6
7  8     9  10

90980–11276

1  2     7  8     3  4
5  6              9  10

90980–11366

1  2        3  4
5  6  7     8  9  10

90980–11450

1  2        3  4
5  6     7     8  9  10

90980–11527

Wire Harness Repair Manual (RM1022E)
