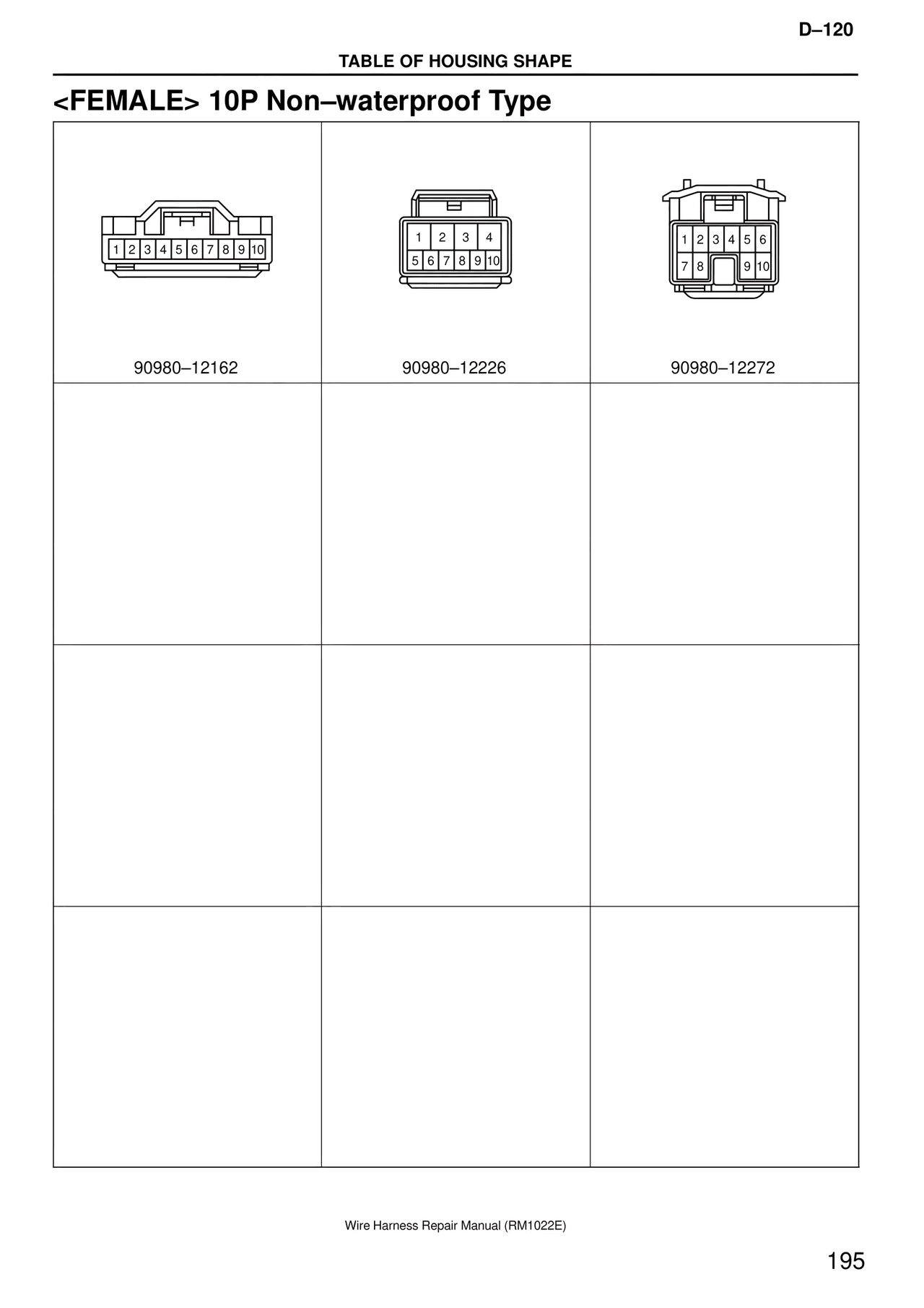

D–120 TABLE OF HOUSING SHAPE <FEMALE> 10P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 90980–12162 1 2 3 4 5 6 7 8 9 10 90980–12226 1 2 3 4 5 6 7 8 9 10 90980–12272 Wire Harness Repair Manual (RM1022E) 195
