D–119

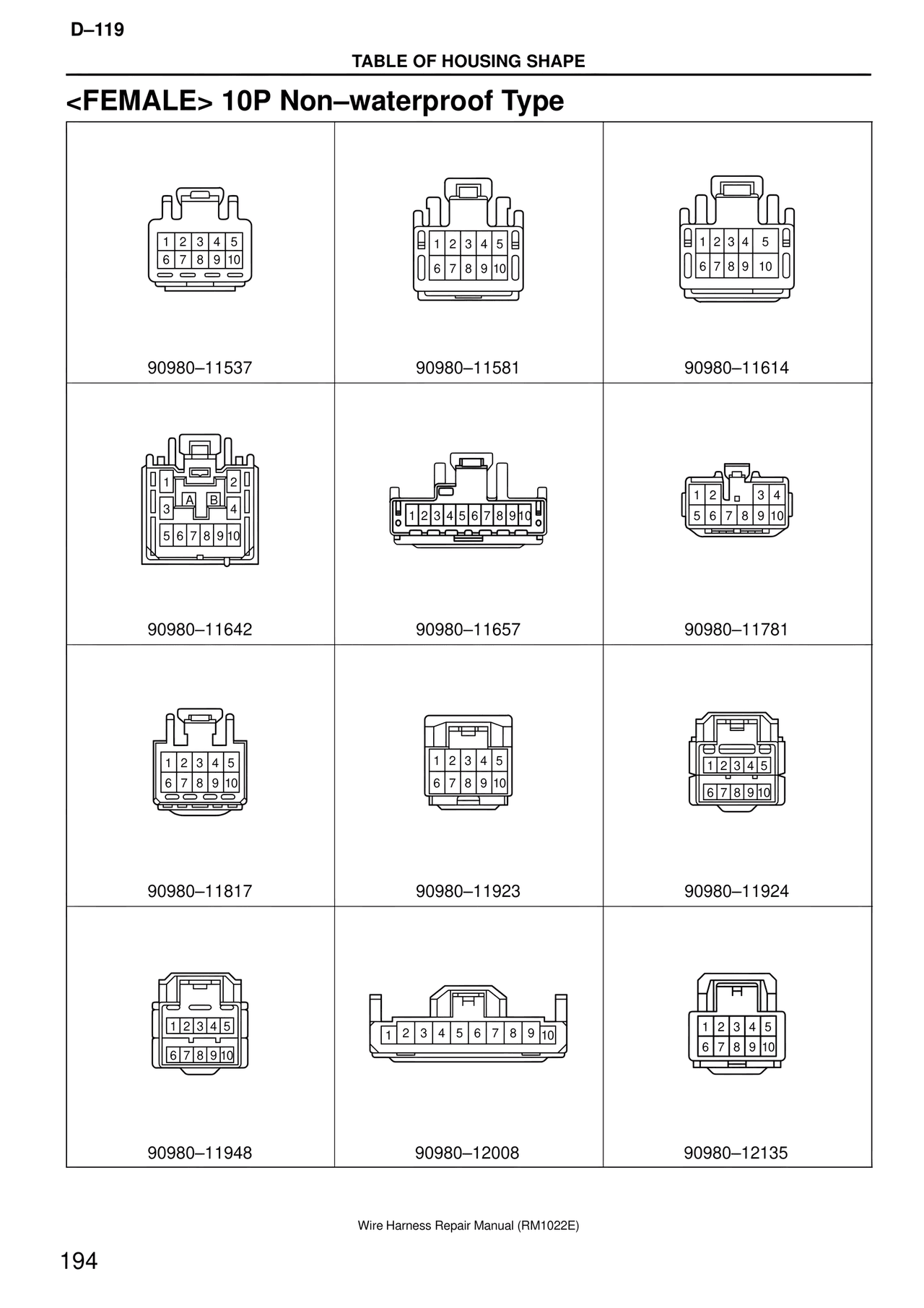

TABLE OF HOUSING SHAPE

<FEMALE> 10P Non–waterproof Type

1 2 3 4 5
6 7 8 9 10

90980–11537

1 2 3 4 5
6 7 8 9 10

90980–11581

1 2 3 4 5
6 7 8 9 10

90980–11614

1  2
A  B
3     4
5 6 7 8 9 10

90980–11642

1 2 3 4 5 6 7 8 9 10

90980–11657

1 2    3 4
5 6 7 8 9 10

90980–11781

1 2 3 4 5
6 7 8 9 10

90980–11817

1 2 3 4 5
6 7 8 9 10

90980–11923

1 2 3 4 5
6 7 8 9 10

90980–11924

1 2 3 4 5
6 7 8 9 10

90980–11948

1 2 3 4 5 6 7 8 9 10

90980–12008

1 2 3 4 5
6 7 8 9 10

90980–12135

Wire Harness Repair Manual (RM1022E)

194
