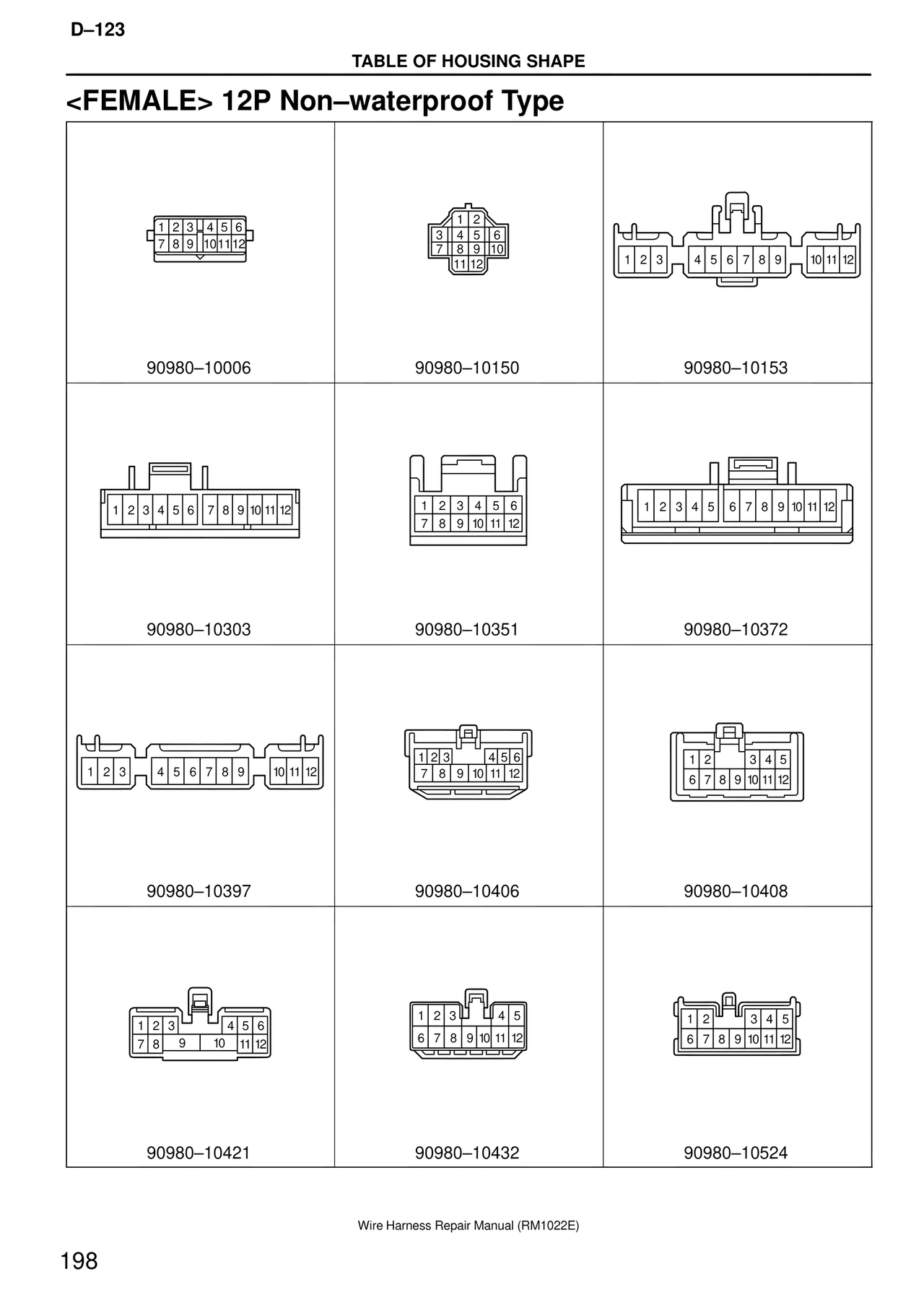

WH/Wire Harness — <female> 12P Non–waterproof Type, page 198

D–123

TABLE OF HOUSING SHAPE

<FEMALE> 12P Non–waterproof Type

1 2 3 4 5 6
7 8 9 10 11 12

90980–10006

1 2
3 4 5 6
7 8 9 10
11 12

90980–10150

1 2 3   4 5 6 7 8 9   10 11 12

90980–10153

1 2 3 4 5 6 7 8 9 10 11 12

90980–10303

1 2 3 4 5 6
7 8 9 10 11 12

90980–10351

1 2 3 4 5   6 7 8 9 10 11 12

90980–10372

1 2 3   4 5 6 7 8 9   10 11 12

90980–10397

1 2 3   4 5 6
7 8 9 10 11 12

90980–10406

1 2   3 4 5
6 7 8 9 10 11 12

90980–10408

1 2 3   4 5 6
7 8   9   10  11 12

90980–10421

1 2 3   4 5
6 7 8 9 10 11 12

90980–10432

1 2   3 4 5
6 7 8 9 10 11 12

90980–10524

Wire Harness Repair Manual (RM1022E)
