WH/Wire Harness — <female> 12P Non–waterproof Type, page 199

D–124

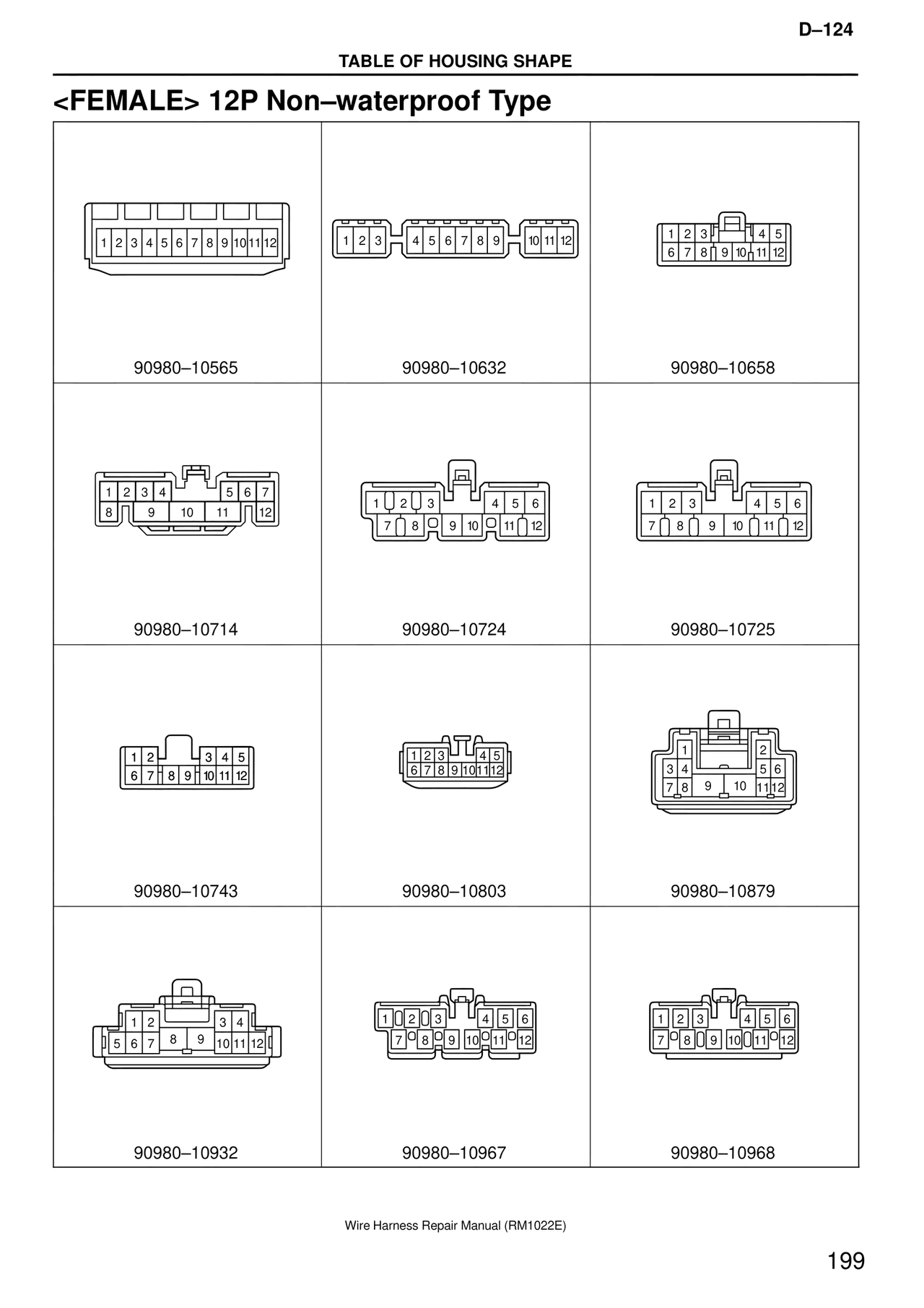

TABLE OF HOUSING SHAPE

<FEMALE> 12P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10 11 12

90980–10565

1 2 3   4 5 6 7 8 9   10 11 12

90980–10632

1 2 3   4 5
6 7 8 9 10 11 12

90980–10658

1 2 3 4   5 6 7
8   9   10   11   12

90980–10714

1 2 3   4 5 6
7 8 9 10 11 12

90980–10724

1 2 3   4 5 6
7 8 9   10   11 12

90980–10725

1 2   3 4 5
6 7 8 9 10 11 12

90980–10743

1 2 3   4 5
6 7 8 9 10 11 12

90980–10803

1       2
3 4     5 6
7 8   9   10   11 12

90980–10879

1 2   3 4
5 6 7   8   9   10 11 12

90980–10932

1 2 3   4 5 6
7 8 9 10 11 12

90980–10967

1 2 3   4 5 6
7 8 9 10 11 12

90980–10968

Wire Harness Repair Manual (RM1022E)
