D–130

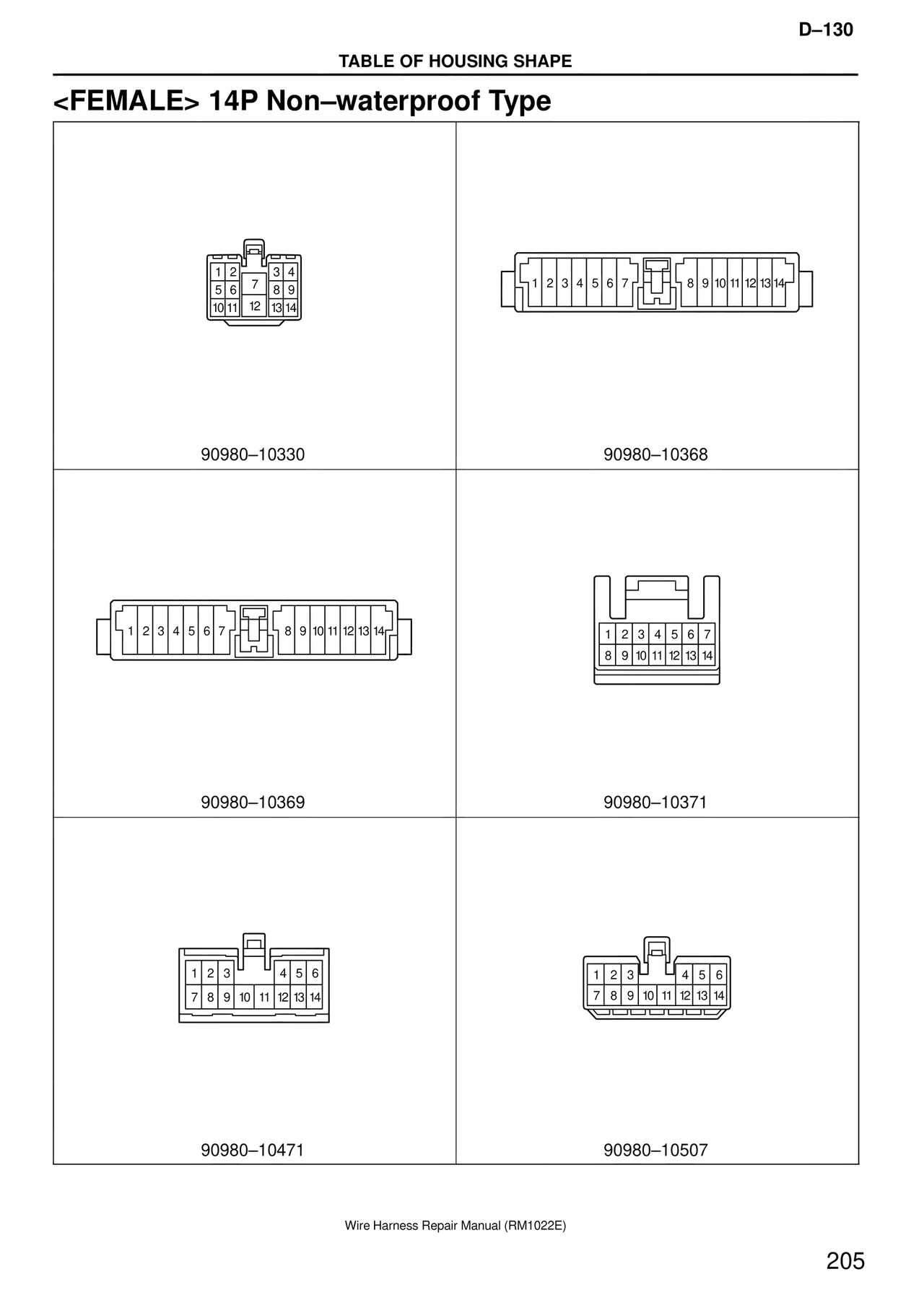

TABLE OF HOUSING SHAPE

<FEMALE> 14P Non–waterproof Type

1 2    3 4
5 6  7  8 9
10 11  12  13 14

90980–10330

1 2 3 4 5 6 7    8 9 10 11 12 13 14

90980–10368

1 2 3 4 5 6 7    8 9 10 11 12 13 14

90980–10369

1 2 3 4 5 6 7
8 9 10 11 12 13 14

90980–10371

1 2 3    4 5 6
7 8 9 10 11 12 13 14

90980–10471

1 2 3    4 5 6
7 8 9 10 11 12 13 14

90980–10507

Wire Harness Repair Manual (RM1022E)

205
