D–129

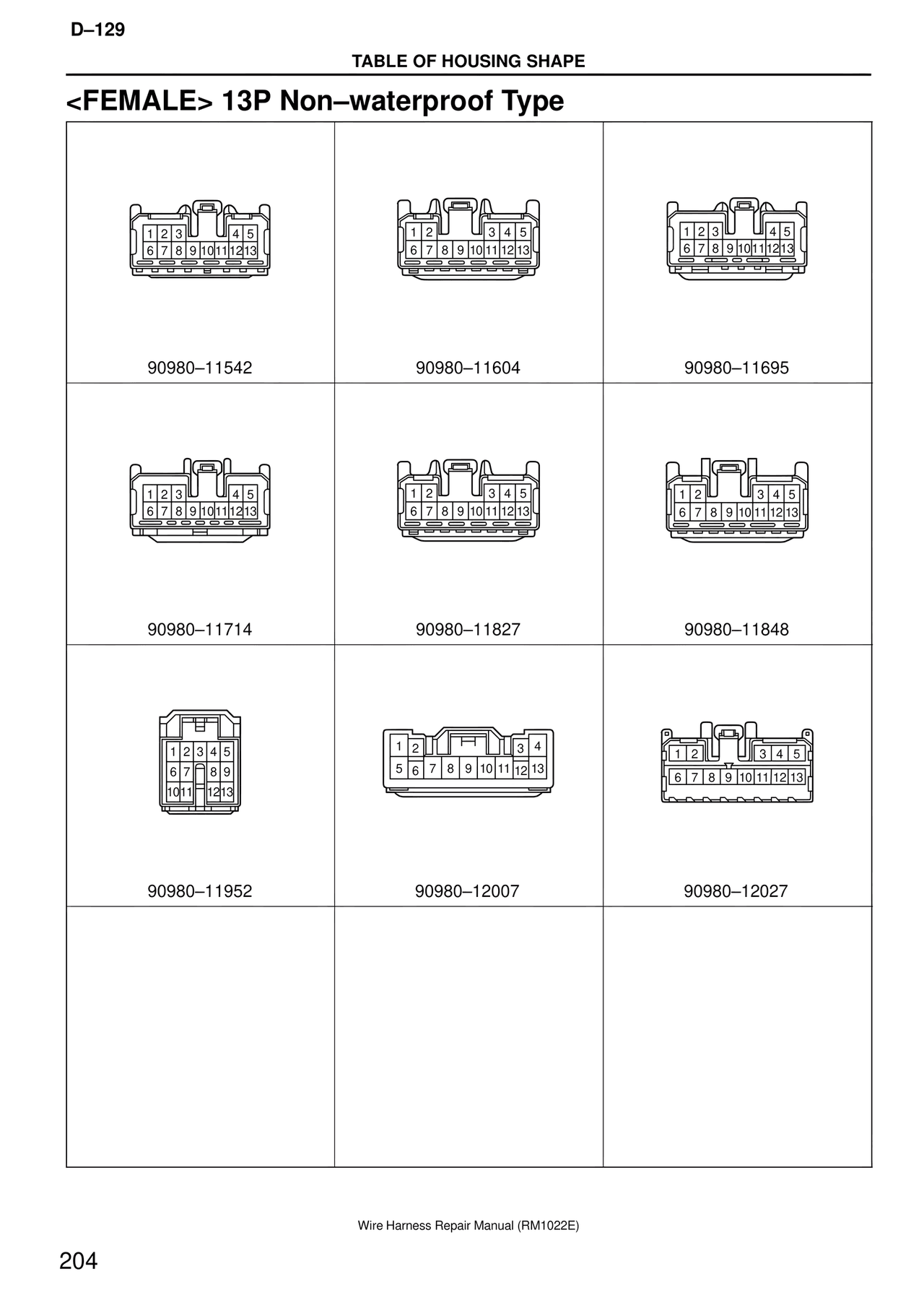

TABLE OF HOUSING SHAPE

<FEMALE> 13P Non–waterproof Type

1 2 3    4 5
6 7 8 9 10 11 12 13

90980–11542

1 2    3 4 5
6 7 8 9 10 11 12 13

90980–11604

1 2 3    4 5
6 7 8 9 10 11 12 13

90980–11695

1 2 3    4 5
6 7 8 9 10 11 12 13

90980–11714

1 2    3 4 5
6 7 8 9 10 11 12 13

90980–11827

1 2    3 4 5
6 7 8 9 10 11 12 13

90980–11848

1 2 3 4 5
6 7  8 9
10 11  12 13

90980–11952

1 2    3 4
5 6 7 8 9 10 11 12 13

90980–12007

1 2    3 4 5
6 7 8 9 10 11 12 13

90980–12027

Wire Harness Repair Manual (RM1022E)
